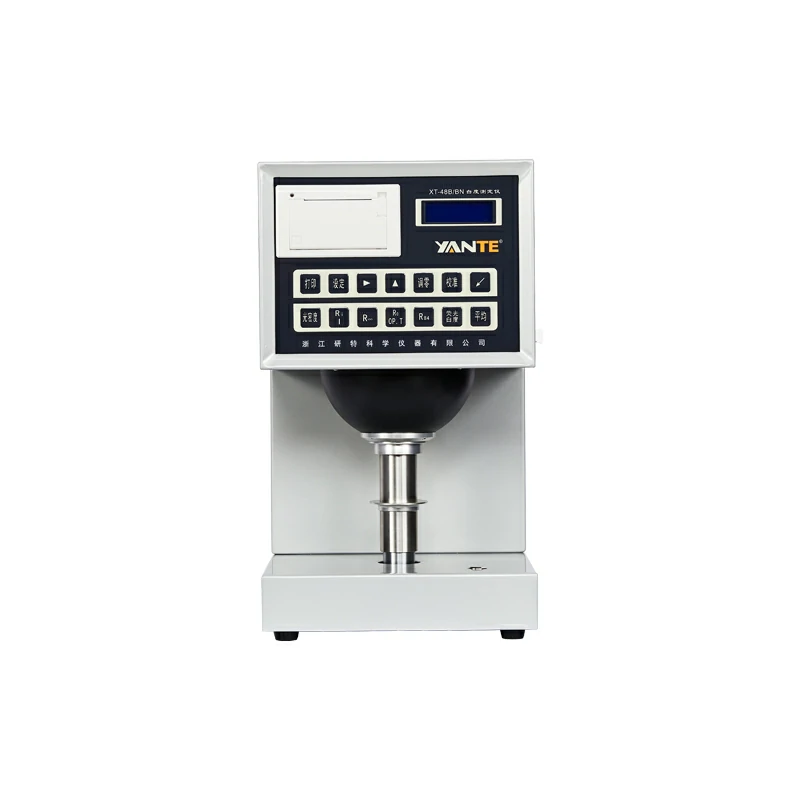

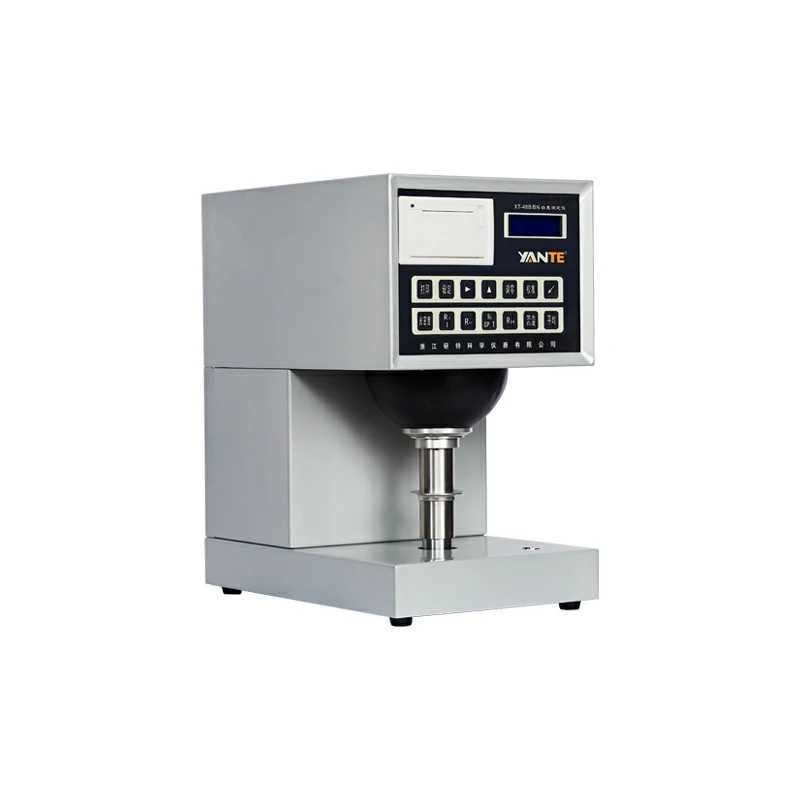

XT-48BN Brightness Meter

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    XT-48BN

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

application range.jpg

Paper, cardboard, plastic, pulp, salt, industrial salt; Starch, calcium carbonate, talcum powder and other powders.


product function.jpg

●  Measure D65 brightness (R457 blue light whiteness)

●  Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)

●  Measure opacity OP (customized), light scattering coefficient S, light absorption coefficient A, transparency (customized), ink absorption value

●  Measure the brightness stimulus value Y10, which is the green diffuse reflection factor Ry

●  Measure optical density-lead core concentration (customized small caliber)


product features.jpg

●   Advanced circuit design effectively guarantees the accuracy and stability of the measurement data

●  The instrument has a power-off protection function, and the calibration data will not be lost after power-off

●  This instrument is equipped with standard RS232 interface, which can be used with PC software for communication (optional)


executive standard.jpg

GB/T 7973,GB/T 7974,GB/T 2679,GB/T 1543,GB/T 10339,GB/T 12911,GB/T 2913

GB/T 13025.2,GB/T 22427.6,ISO 2469,ISO 2470,ISO 2471,ISO 9416


supporting accessories and consumable.jpg

NO.

Name

Model


Standard

Optional

1

Flating Powder Holder

YT-QY

      Flating Powder Holder.png


2

Fiber Sample Holder


Fiber Sample Holder.JPG



technical parameters.jpg

No.

Parameter item

Technical index

1

Power Supply

AC(100~240)V,(50/60)Hz,50W

2

Working Environment

Temperature(10~35)℃, Humidity≤ 85%

3

Display

128X32dot matrix LCD screen

4

Light source

Analog D65

5

Integrating sphere

Diameter 150mm

6

Sample Size

Test plate diameter ≥φ30mm while sample thickness≤40mm

7

Zero Drift

≤0.1

8

Indicating Drift

≤0.5

9

Repetitive Accuracy

≤0.02(10 consecutive tests at intervals of 10 seconds)

10

Specular Reflectance Accuracy

≤0.1

11

Print

Built-in thermal printer

12

Communication Interface

RS232(optional)

13

Dimension

365×260×425 mm

14

Net Weight

12kg around
