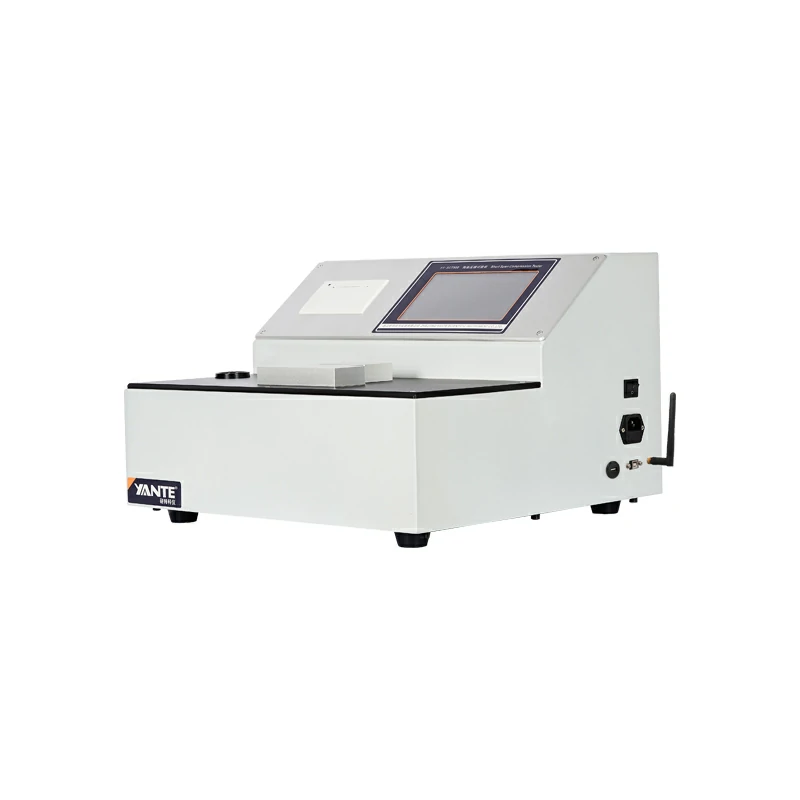

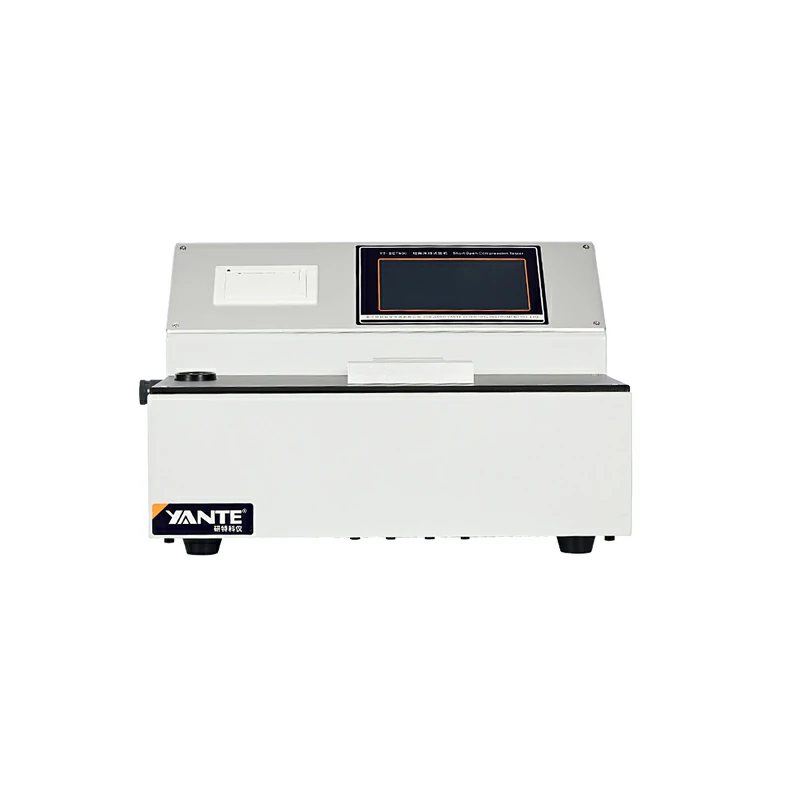

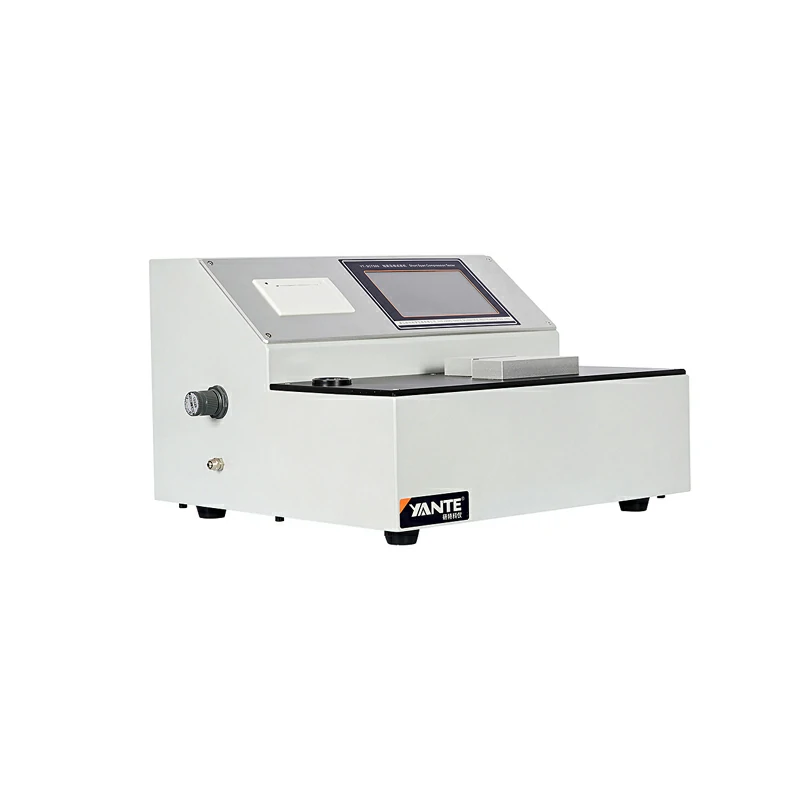

YT-SCT500 Short Span Compression Tester

product features.jpg

● Double cylinders, pneumatic clamping of the sample, reliably guarantee the parameters specified by the standard.

● 24-bit precision analog-to-digital converter, ARM processor, fast and accurate sampling

● It can store 5000 sets of batch data, which is convenient for users to check historical measurement data.

● Driven by a stepping motor, the speed is accurate and stable, and it can return quickly to improve the test efficiency.

● The vertical and horizontal tests can be carried out in the same batch, and the vertical and horizontal average values can be printed.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● The real-time force value-displacement curve is displayed during the test, which is convenient for users to observe the test process.

executive standard.jpg

ISO 9895、GB/T 2679·10

supporting accessories and consumable.jpg

No.	Accessory name	Model	Picture	Standard	Optional
1	Standard Distance Cutter	YT-Q15			√
2	Punch Standard Distance Cutter	YT-CQ15			√

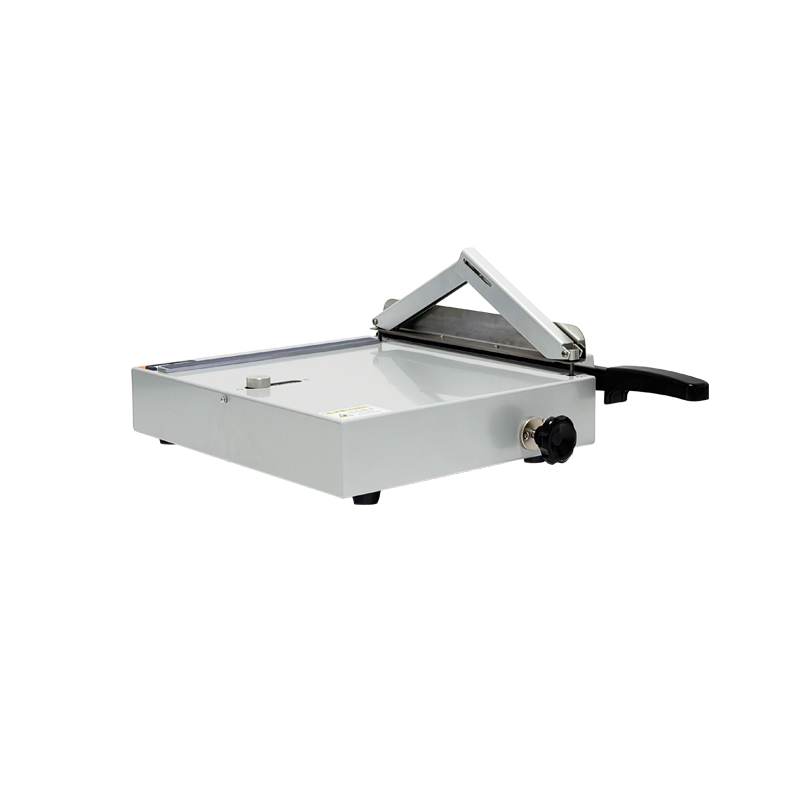

3	Adjustable Paper Cutter	YT-TJD300			√

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz 50W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen
4	Measuring range	（10～500） N
5	Specimen holding force	（2300 ± 500 ）N（Gauge pressure 0.3-0.45Mpa）
6	Resolution	0.1N
7	Indication error	±1％(Range 5%～100%)
8	Indication variability	≤1%
9	Free spacing of specimen clamps	0.70 ± 0.05 mm
10	Test speed	（3±1 ）mm/min (Relative moving speed of two fixtures)
11	Specimen holding surface size	30×15 mm
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Print	Built-in thermal printer
14	Gas source	≥0.5MPa
15	Dimension	530×425×305 mm
16	Net Weight	34kg
