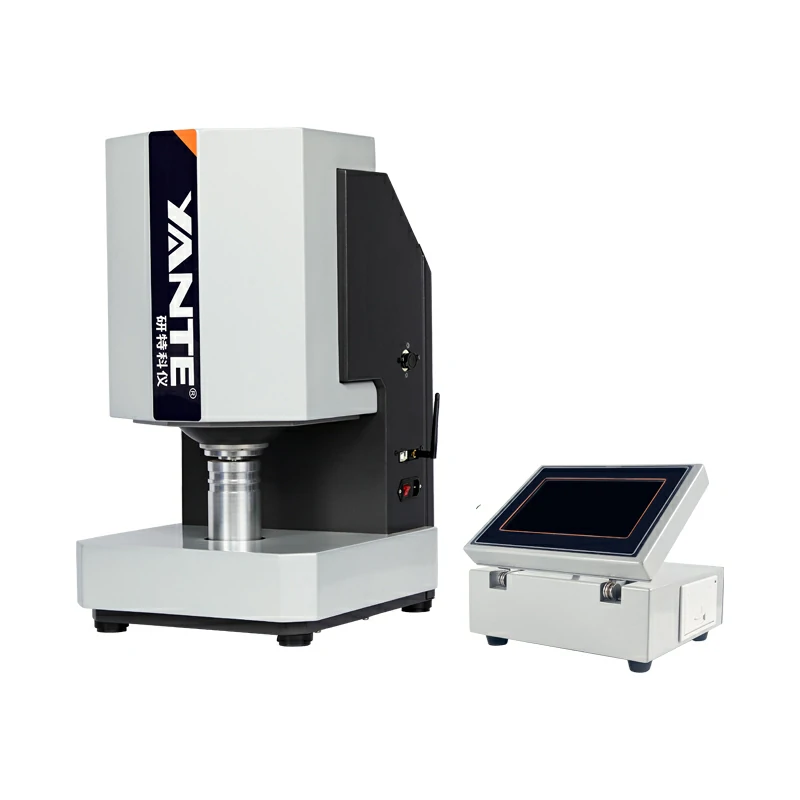

YT-CM3000 High Accurancy Color Analyzer（Spectrometer）

Papermaking, printing, textile printing and dyeing, ceramics, building materials, chemicals, grain, salt and other industries and other production and commodity inspection departments that need to determine the color and whiteness of solids.

● Determine the color and color difference of solids under C light source and D65 light source conditions:

● CIE1931 tristimulus values and chromaticity coordinates under standard chromaticity system;

● CIE1964 supplement the standard chromaticity system with tristimulus values and chromaticity coordinates;

● CIE1976 L*, u*, v*, C*uv, Suv, huv, a*, b*, C*ab, hab and color difference in uniform color space.

●  Determine CIE whiteness W10 (Gantz visual whiteness) and skew value Tw10

● Measure the brightness of the blue diffuse reflection factor D65 and the fluorescence brightness of the fluorescent brightening material.

● Measure the ISO brightness at C/2° indoor light and the fluorescence brightness of the fluorescent brightening material.

● Determine the whiteness and color of building materials, non-metallic mineral products and ceramics.

●  Determine whiteness, Lab and color difference under Hunter system.

●  Determine the whiteness and chromaticity of the fiber (with fiber sampler).

● Measure the whiteness, chromaticity Lab and color difference of the powder.

● Measure yellowness YI, opacity OP, light scattering coefficient S, light absorption coefficient A, transparency, ink absorption value.

● Measure the reflected optical density Dx, Dy, Dz.

●  Imported concave flat field grating, photoelectric display sensor, pulsed xenon lamp and other parts, to ensure the accuracy of the equipment basis.

● Cotex-M4 ARM processor

● Stepper motor control UV radiation, automatic and accurate control of radiation, fluorescence brightness one-key test.

● Test data can be exported from USB flash drive.

● The system and screen software can be upgraded through the network or USB flash drive.

● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.

● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.

● The instrument is equipped with touch screen as standard, which can operate in two modes: touch screen operation and PC software operation. Convenient for users to choose. Touch screen operation is fast and rapid; PC software operation, test data storage space is not limited, easy access and print historical measurement data, the number of standard samples is not limited.

GB/T 7974-2013，GB/T 10339-2018，GB/T 7973-2003，GB/T 7975-2005，GB/T 3979-2008 ，GB/T 9338-2008，GB/T 2679.1-2020，GB/T 1543-2005，GB/T 10339-2007，GB/T 8940.2，GB/T 5950，ISO2470-1-2016，ISO 2470-2-2008，ISO 2471，ISO 2469
