Home > Product Center > Hygiene Products Testing Equipment > Details
Send from factory in 3-7 work days after receive payment
YANTE
YT-H4E
China
100% Advance T/T
Wooden Box

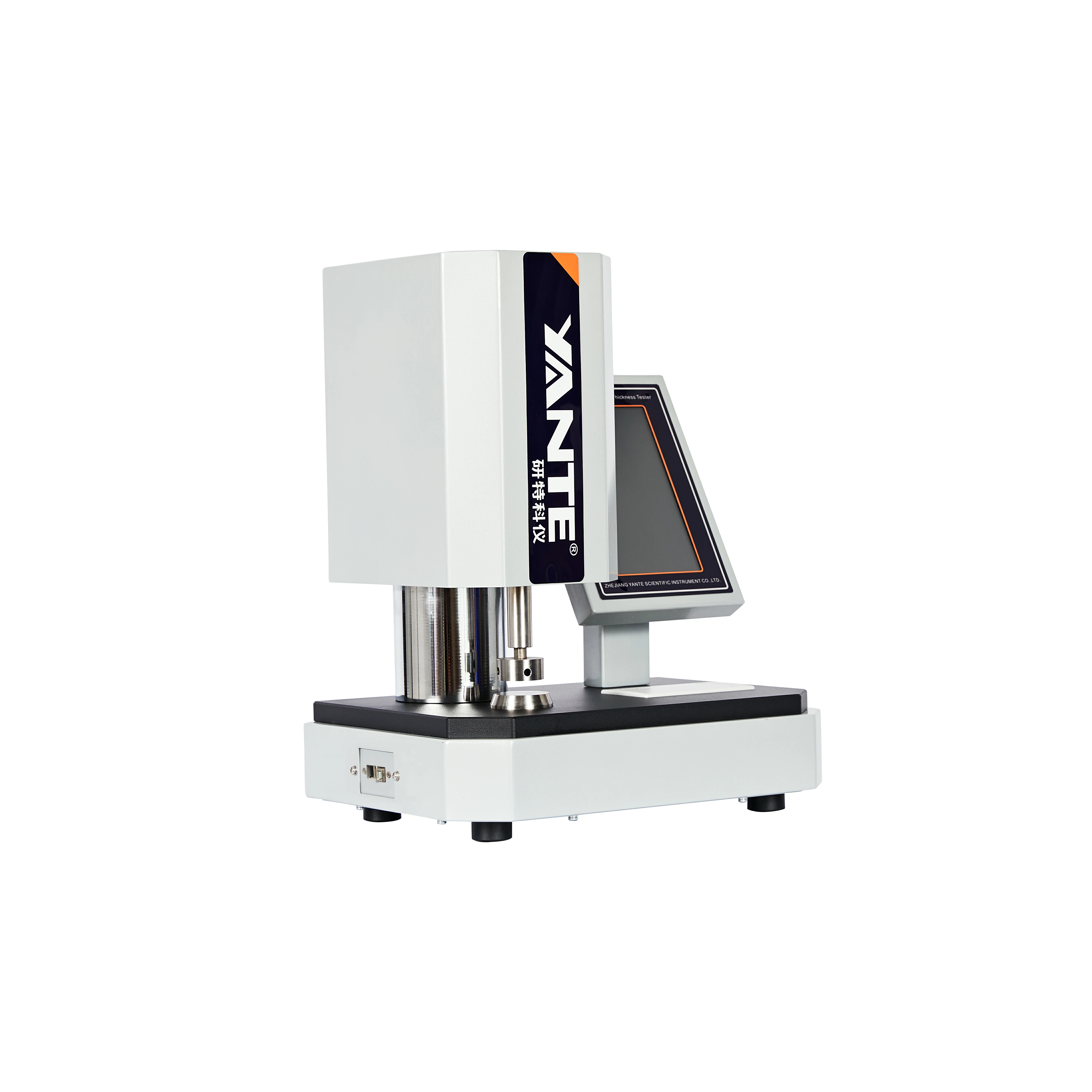

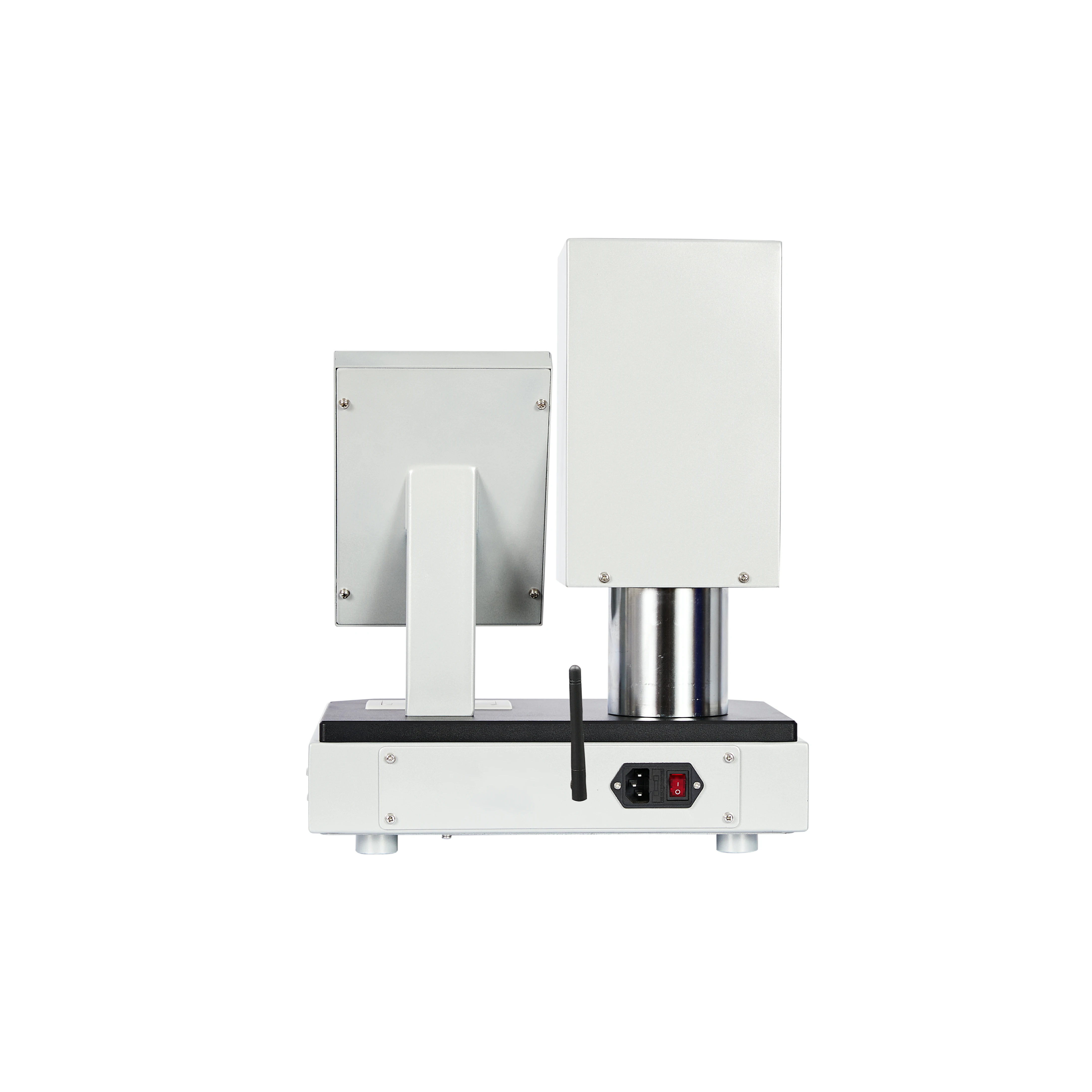

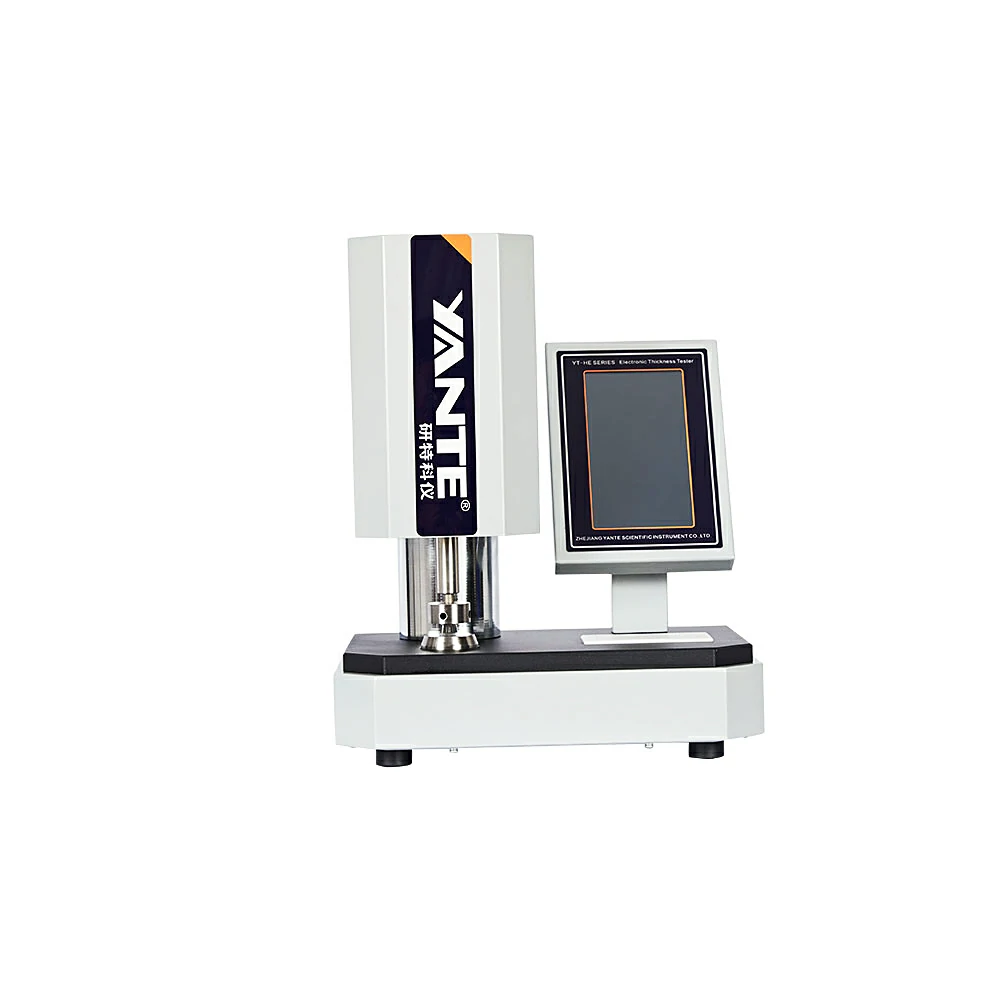

Tissue Paper Electronic Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials and corrugated paperboard. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
Toilet paper
● One-click test, easy to understand.
● Cotex-M4 ARM processor, improve the response speed of the instrument, accurate and fast calculation.
● Probe rise and fall speed is adjustable.
● Data saving function after sudden power failure. Data before power failure can be retained and tested.
● Automatically measure, count and print test results.
● Test data can be exported from USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.
GB/T 24328.2-2010，ISO 12625-3:201
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz ,50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Measuring range | (0 -10)mm |
5 | Resolution | 0.001mm |
6 | Indication error | ±0.003m or ±0.5％ |
7 | Repeatability | ≤0.003mm or ≤ 0.5% |
8 | Parallelism between measuring surfaces | ≤0.006mm |
9 | Contact area | (1000±5) mm² |
10 | Contact pressure | (2±0.1)kPa |
11 | Probe descent speed | (0.5 ~ 10) mm/s adjustable |
12 | Data storage | 50 test data |
13 | Data export | Export data to USB flash drive |
14 | Built-in thermal printer | |
15 | Communication Interface | USB、WIFI（2.4G） |
16 | Dimensions | 365×255×440 mm |
17 | Net Weight | 24kg |
The Tissue Powder Drop Rate Tester is a basic instrument for measuring the powder drop rate of toilet paper and its products. Fix the long end of the sample on the sample holder and stop after swinging for a certain period of time, and weigh the mass before and after the swing.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.
The Ball Burst Tester uses the principle that the ball type test head punctures the sample to analyze the rupture strength of dry and wet samples.
This instrument is mainly used for unsized paper such as toilet paper and other papers with high water absorption. It is not suitable for paper with a capillary liquid absorption height of less than 5mm within 10 minutes.
