YT-LA Series Vertical Tensile Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-LA
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to measure the tensile strength of objects.
● Paper, cardboard; aluminum foil, aluminum-plastic tape;
● Plastic film and other non-metallic materials.
● Non-woven fabric
● Measure tensile force and tensile strength
● Measure elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus
● Measure adhesive tape peel strength
● The transmission mechanism adopts ball screw and three guide shafts, and the transmission is smooth and accurate.
● The 10-inch color LCD touch screen is adopted to display the tensile curve in real time.
● The Cotex-M4 ARM processor improves the response speed of the instrument and ensures the real-time measurement.
● Sudden power-off data saving function, the data before power-off is retained after booting and the test can be continued.
● The characteristics of automatic reset, data memory, overload protection and fault self-diagnosis.
● Test data supports U disk export.
● The system and screen software can be upgraded through the network or U disk.
● Support multiple communication methods, and the online software (purchased separately) can communicate through WIFI or USB.
● Test data supports uploading to the cloud server, and cooperates with the QMS paper quality management system (purchased separately) to monitor paper product inspection data in real time.
GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Standard Distance Cutter | YT-Q15 |
| √ | |
2 | Punch Standard Distance Cutter | YT-CQ15 | | √ | |
3 | Adjustable Paper Cutter | YT-TJD300 |
| √ |
No. | Parameter Item | Technical indicators |
1 | Power supply | AC(100～240)V，(50/60)Hz，100W |
2 | Working environment | Temperature (10～35)℃, relative humidity ≤85% |
3 | Display | 10-inch color touch screen |
4 | Measuring range | (0.15～30)N /(1～300)N /(1-500)N/(3～1000)N |
5 | Resolution | 0.01N(LA30) / 0.01N(LA300) / 0.01N(LA500)/ 0.1N(LA1000) |
6 | Indication error | ±0.5%(range 5%～100%) |
7 | Work Capacity | 300mm / 1000mm(customized) |
8 | Specimen width | 15mm(25mm，50mm optional) |
9 | Test speed | (1～500)mm/min(adjustable) |
10 | Data storage | 50 test data |
11 | Data export | Export data to USB flash drive |
12 | Built-in thermal printer | |
13 | Communication interface | USB、WIFI（2.4G） |
14 | Dimensions | 490 ×475 ×930 mm |
15 | Net weight | 70kg |
Send your message to us
Related Products
-
-
YT-NPY1600Q Bursting Tester for Paper
Bursting Tester for Paper is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the bursting strength of thin materials such as paper. It is an indispensable ideal equipment for scientific research units, paper manufacturers, packaging industry, and quality inspection departments.
-

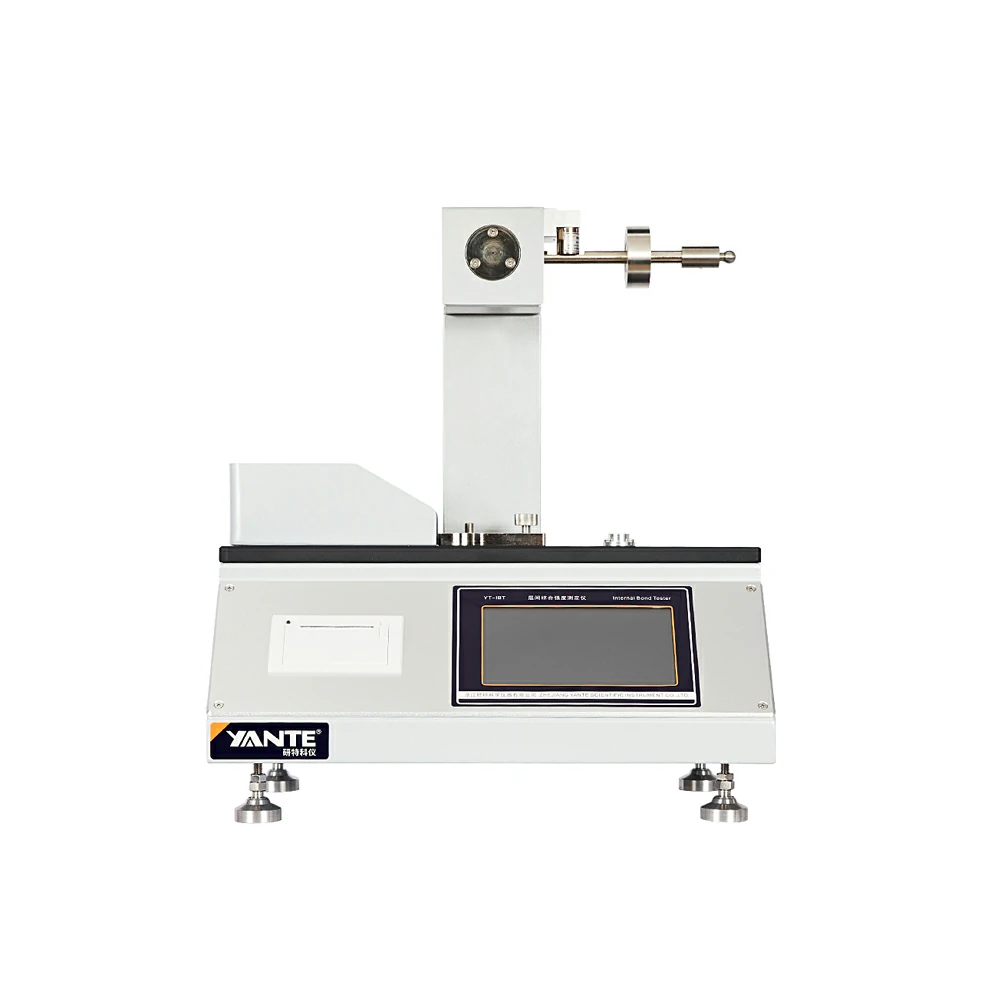

YT-IBT Internal Bond Tester
