YT-YS05KN Paper Tube Compression Tester
Paper Tube Compression Tester is a testing instrument for testing the compressive strength of paper tubes.
Product Center
Home > Product Center > Paper Products Testing Equipment > Details
Product Center
Χ️

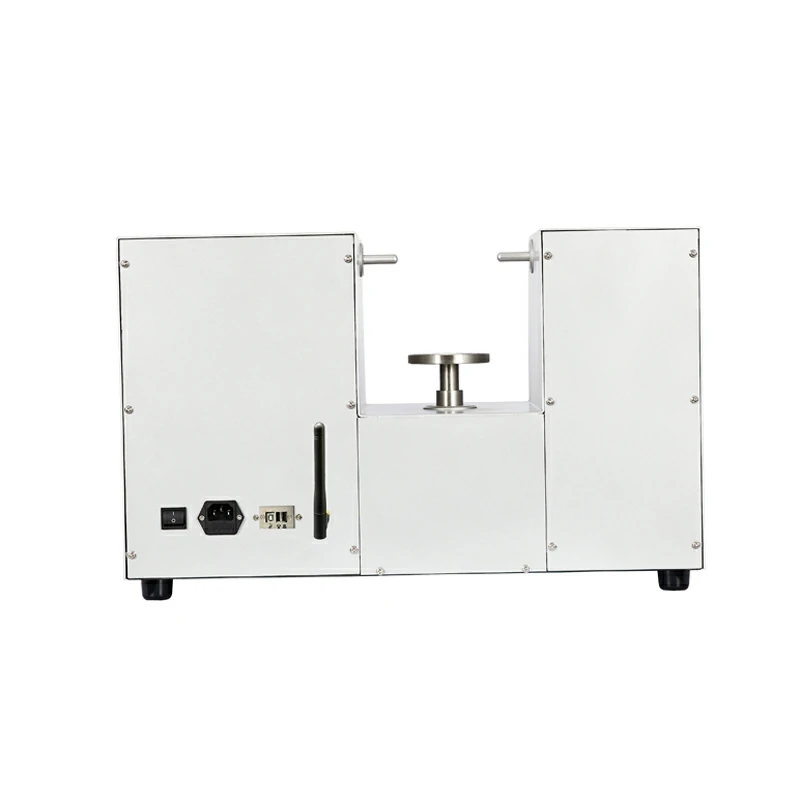

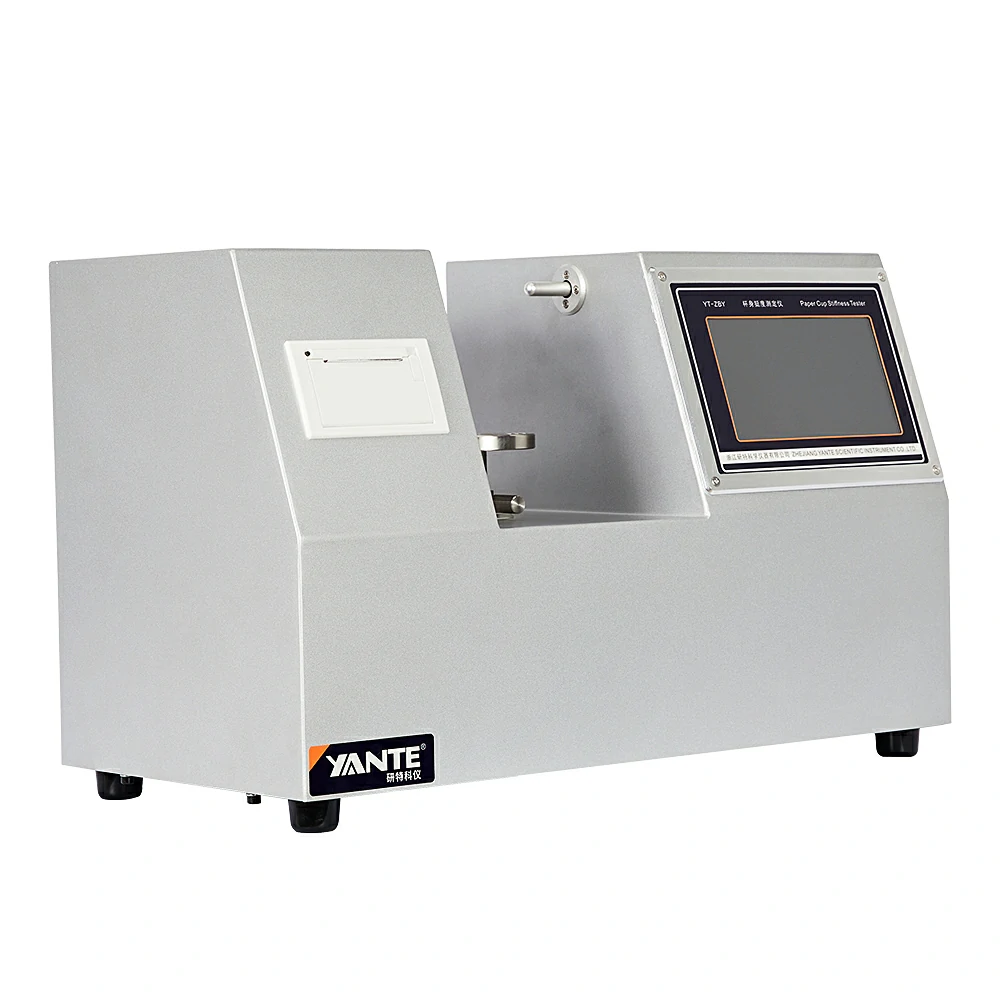

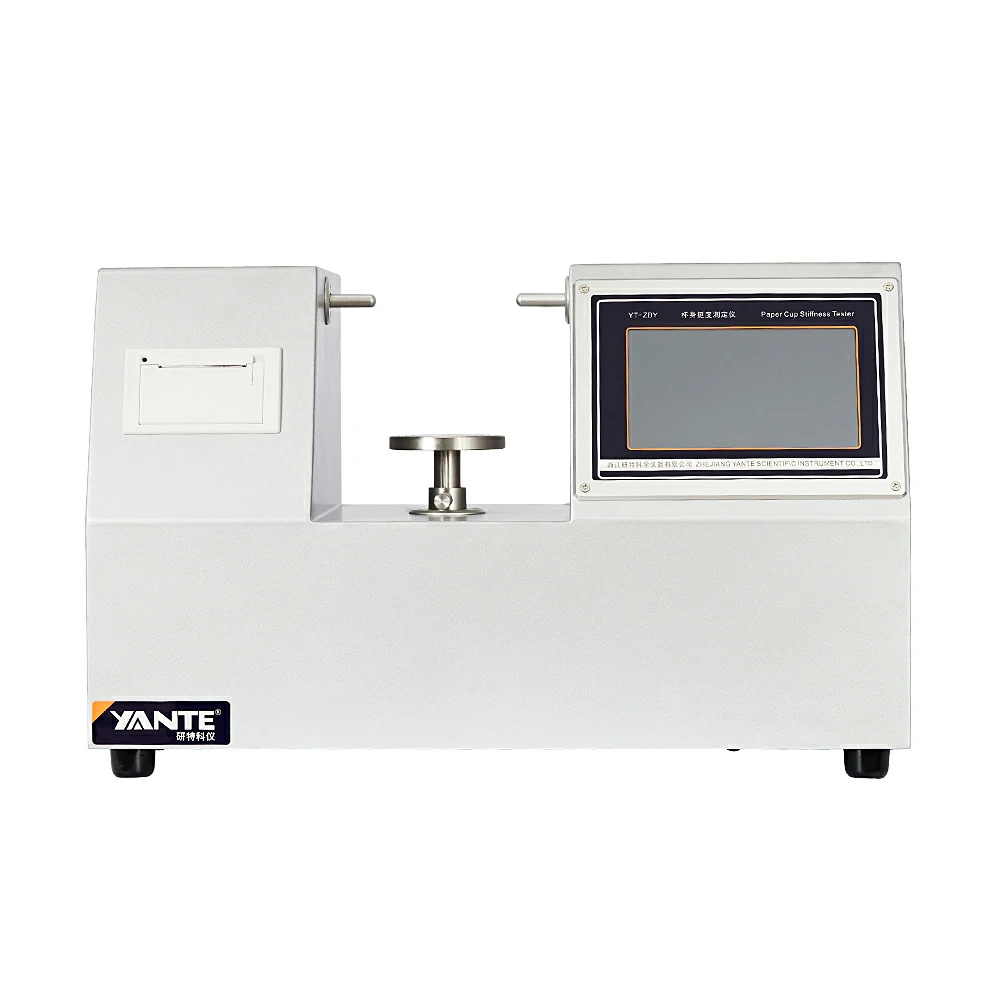

YT-ZBY Paper Cup Stiffness Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-ZBY
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
Paper cups, paper bowls, paper buckets
● The movable bench can be raised and lowered and locked, suitable for samples of different heights
● Cotex-M4 ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
● Double measuring head structure design, more accurate test data
● The instrument has the function of automatically restoring the initial position over the range
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Test data can be exported to USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to cloud server, and paper test data can be monitored in real time with QMS paper quality management system (purchased separately).
QB/T 5023，GB/T 27590，JJG157
PC computer control software (purchase separately)
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz,100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Paper cup size | Measurable paper cup diameter：35～150mm，Paper cup height：15≤L≤180mm |
5 | Measuring range | 0.2~50N |
6 | Resolution | 0.01N |
7 | Indication error | ±0.5％(Range 5%～100%) |
8 | Data storage | 50 times test data |
9 | Data export | Export data to USB flash drive |
10 | Built-in thermal printer | |
11 | Communication Interface | USB、WIFI(2.4G) |
12 | Dimensions | 560×275×350 mm |
13 | Net Weight | 36kg |
