YT-QDL125 Pneumatic Cobb Sample Cutter
Pneumatic Cobb Sample Cutter is a specialized research and development production used for sampling high gsw and grey board sample test tool.
Product Center
Home > Product Center > Cutters and Accessories > Details
Product Center
Χ️

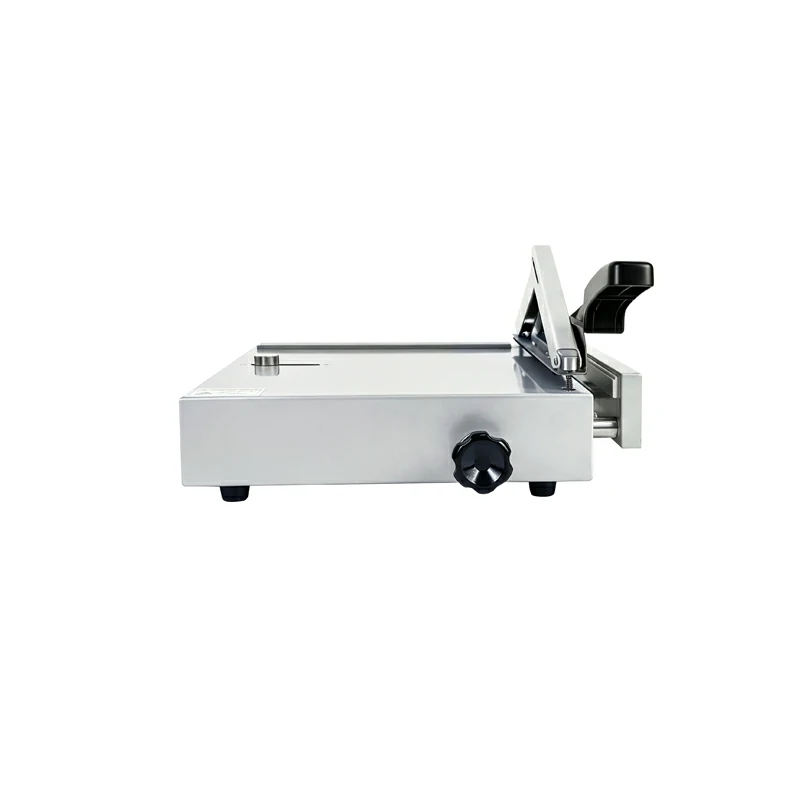

YT-QDL100 Pneumatic GSM Sample Cutter
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-QDL100
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
Pneumatic GSM sample cutter can be used in many different fields， Including: quantitative sampling of paper and cardboard, quantitative sampling of textiles, sheet sampling of sanitary products such as toilet paper and sanitary napkins, sheet sampling of rubber and plastic, quantitative sampling of film, quantitative sampling of composite sheet raw materials such as flexible packaging. Quickly and accurately cut the sample of the standard area, which is an ideal auxiliary test tool for paper making, packaging and other production enterprises and quality supervision and inspection industries and departments.
Sheet sampling of paper and paperboard, textiles, toilet paper, sanitary napkins, etc.
Rubber plastic sheet, film, flexible packaging and other composite sheet raw materials.
No. | Parameter item | Technical index |
1 | Sampling diameter | 100c㎡ |
2 | Sampling size error | ±0.35c㎡ |
3 | accuracy | ±0.2mm |
4 | Working environment | Temperature (20±10) ℃, humidity < 85% |
5 | Sampling thickness | (0.1~7.0) mm corrugated cardboard |
6 | Net Weight | 35kg |
7 | Dimensions | 240*320*550mm |
Send your message to us
Related Products
-
-
YT-CQ25 Internal Bond Sample Cutter
The punching Internal Bond Sample Cutter is used to cut samples with a width of 25.4mm to meet the sample preparation for the internal bond test . It complies with the relevant provisions of the QB/T1671 standard. It has the advantages of high sampling size precision and easy operation. It is an ideal test aid for paper and packaging, scientific research, quality inspection and other industries and departments.
-
YT-TD23 Stiffness Sample Cutter
Stiffness Sample Cutter is suitable for cutting the samples needed for stiffness test of paper, cardboard, sheet, etc.
-
YT-TJD300 Adjustable Paper Cutter
Adjustable Paper Cutter is a special sampling device for testing the physical properties of paper and cardboard. It has the advantages of wide sampling size range, high sampling accuracy, and easy operation. It can easily cut the standard test for tensile test, tear test, stiffness test and other tests. It is an ideal auxiliary test instrument for industries and departments such as papermaking, packaging, testing and scientific research.
