Send from factory in 3-7 work days after receive payment
YANTE
YT-MC
China
100% Advance T/T
Wooden Box

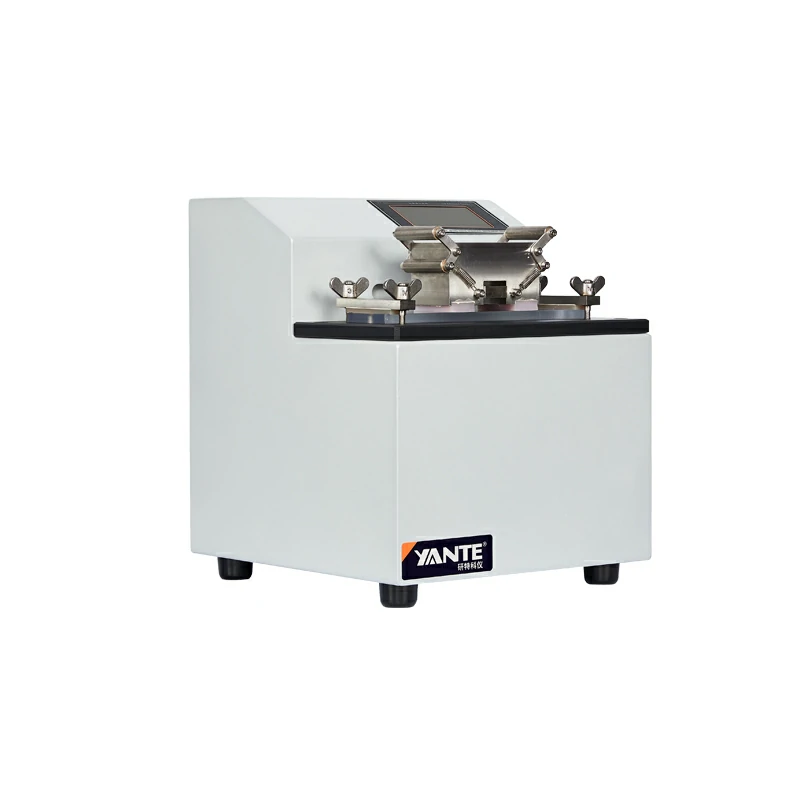

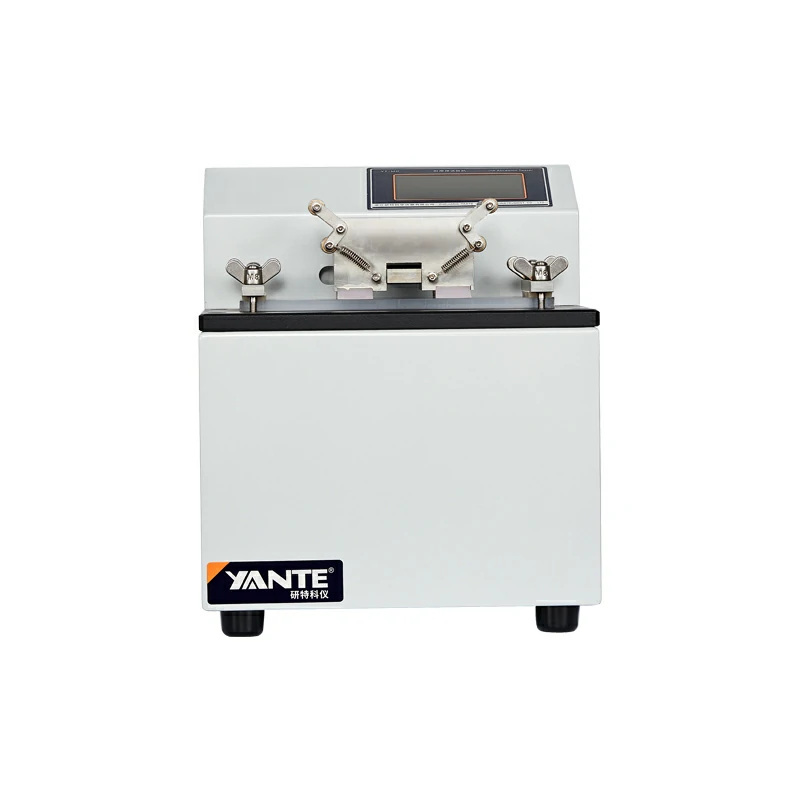

Ink Abrasion Tester is professionally suitable for testing the wear resistance of the printed ink layer, the PS plate photosensitive layer and the surface coating of related products; it can effectively analyze the problems of poor abrasion resistance of printed products, ink layer shedding, low PS plate printing resistance and poor coating hardness of other products.
● 5-inch touch screen, Chinese display, 4 adjustable speeds
● Power-off memory function, after powering on again, the parameter status entered before the last power failure is maintained
● Closed-loop servo stepper motor, ball screw, precision dual-axis guide
GB/T 7706，GB/T 17497.3
No. | Parameter Item | Technical indicators |
1 | Power supply | AC（220±10％）V, 50Hz 50W |
2 | Working environment | Temperature (10～35)℃ Relative humidity ≤ 85% |
3 | Display | 5-inch touch screen |
4 | Measuring range | （1～99999）times |
5 | Friction distance | 60mm |
6 | Friction speed | 21/43/85/106 (times/min) |
7 | Load | 20N (4 pounds customized) |
8 | Dimensions | 295×285×335 mm |
9 | Net weight | 22kg |
High Accurancy Color Analyzer is a precision instrument for measuring the whiteness, color and color difference of solids. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, chemical, food, salt and other industries industries that need to determine the color and whiteness of solids in Production and commodity inspection department.
The Automatic Smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument developed based on the working principle of Bekk smoothness tester. It is an ideal testing equipment for papermaking, packaging, printing, commodity inspection, scientific research and other departments.
The friction coefficient tester is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.
