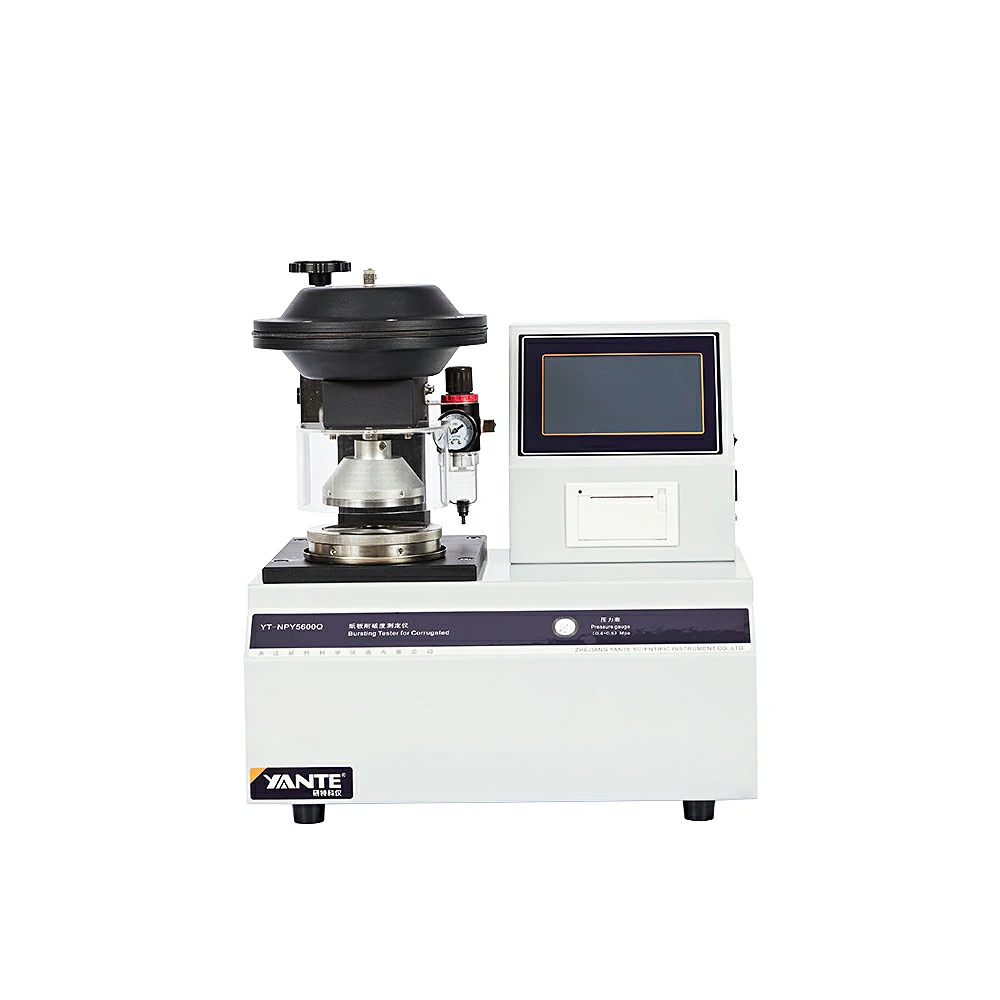

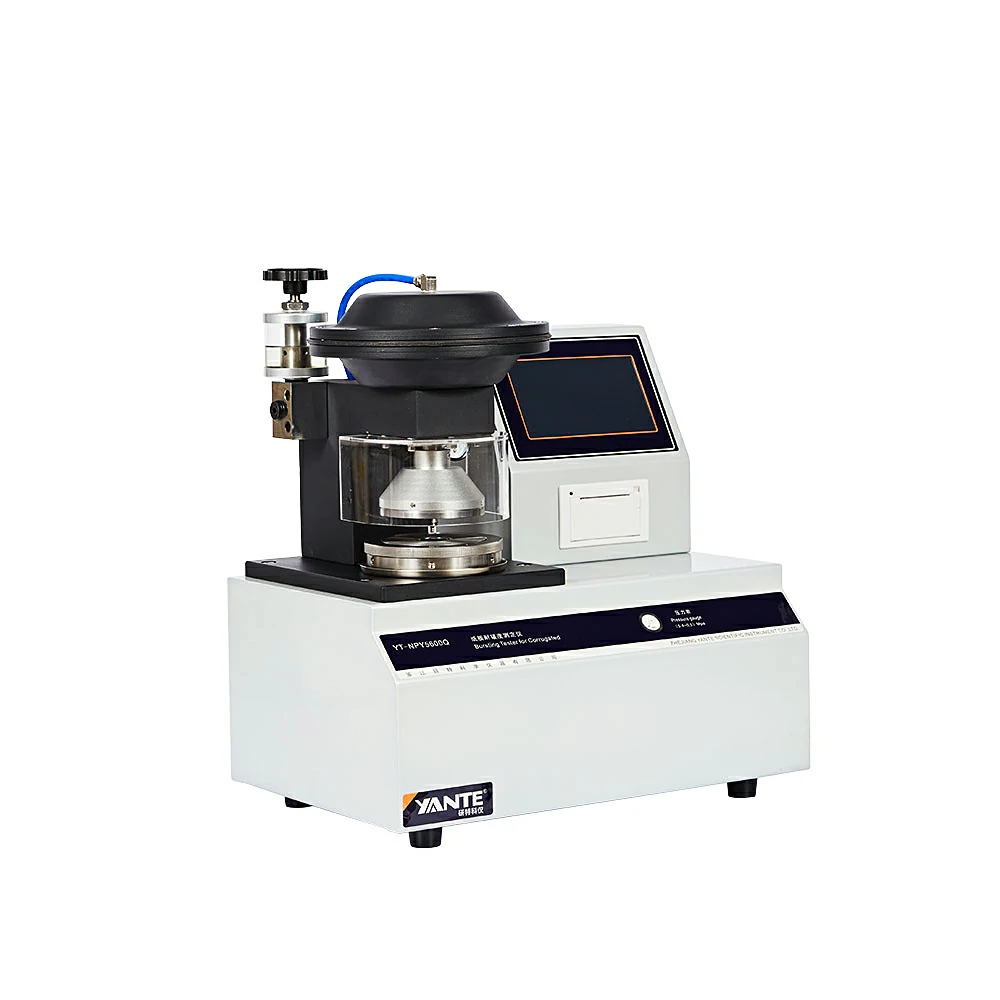

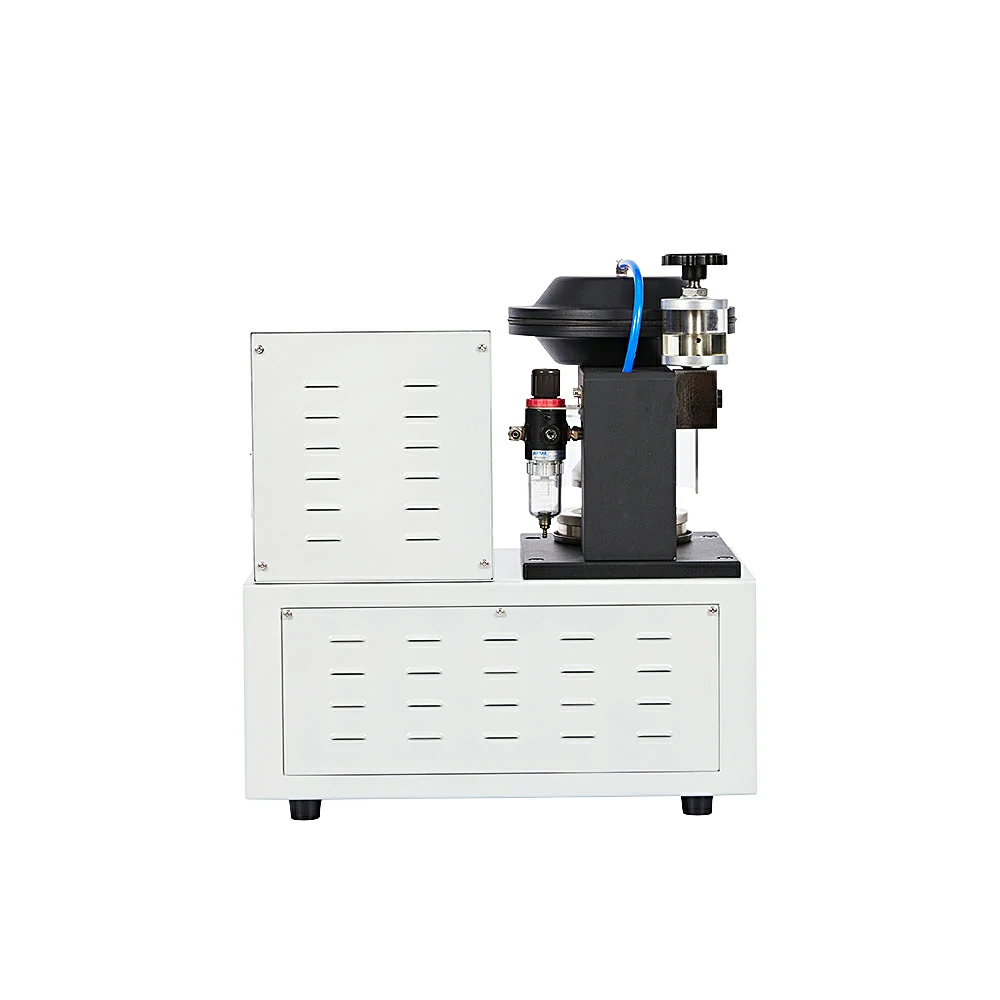

YT-NPY5600Q Bursting Tester for Corrugated

application range.jpg

Corrugated cardboard, cartons, paper trays, aluminum foil, film, rubber, silk, cotton and other non-paper materials

product features.jpg

● The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range

● Pneumatic clamping system, one key test

● ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data

● Using 7-inch color touch screen,English display, touch buttons, real-time display of pressure curve

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Over-range automatic reset

● Three units can be selected kPa, kgf/cm2, Psi, can be switched at will

● Communication with computer software (purchase separately)

executive standard.jpg

GB/T 1539，QB/T 2679.8，GB/T 6545，ISO 2759

supporting accessories and consumable.jpg

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC100V±10% or AC220V±10%，(50/60)Hz，150W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Measuring range	250～5600kPa
4	Indication error	±0.5%(Range 5%～100%)
5	Resolution	1kPa
6	Refueling speed	170±15ml/min
7	Air pressure adjustment	0.4MPa
8	Hydraulic system tightness	Upper limit of measurement，1min Pressure drop＜10％Pmax
9	Upper clamp ring aperture	31.5±0.05 mm
10	Lower clamp ring aperture	31.5±0.05 mm
11	Print	Built-in thermal printer
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	470×315×520 mm
14	Net Weight	56kg around
