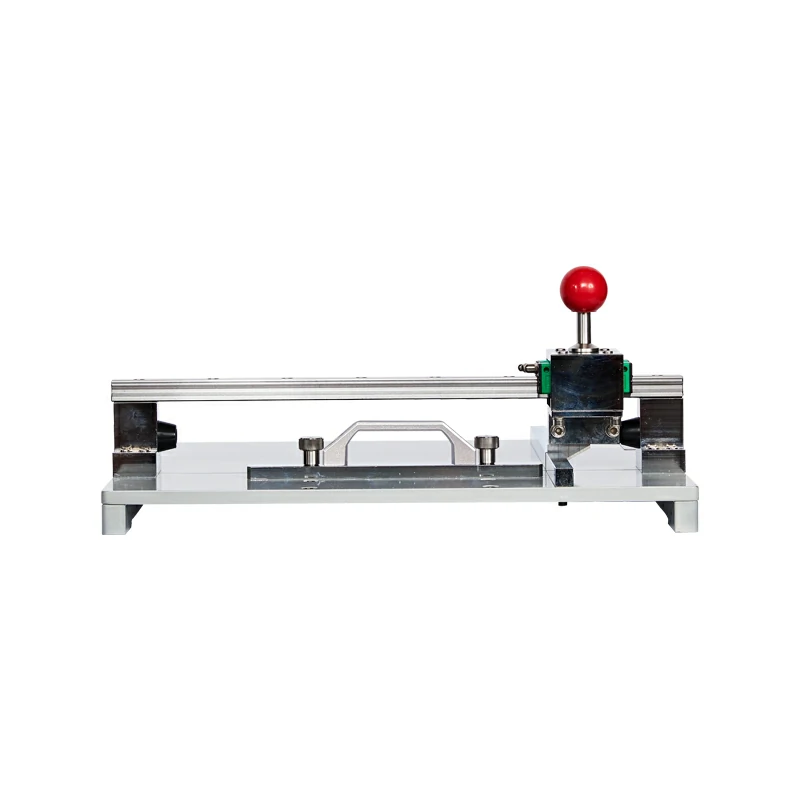

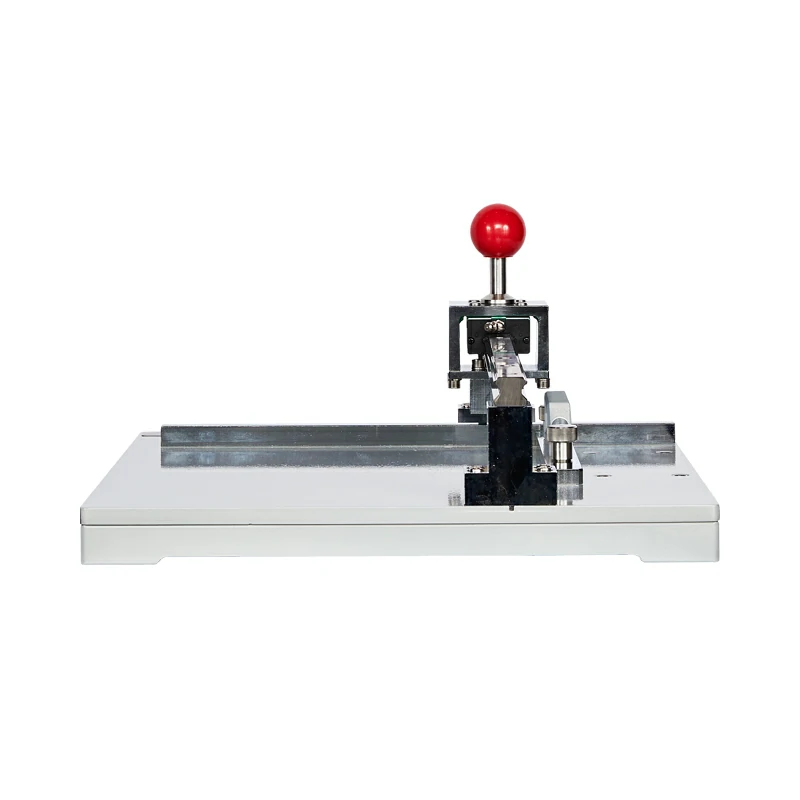

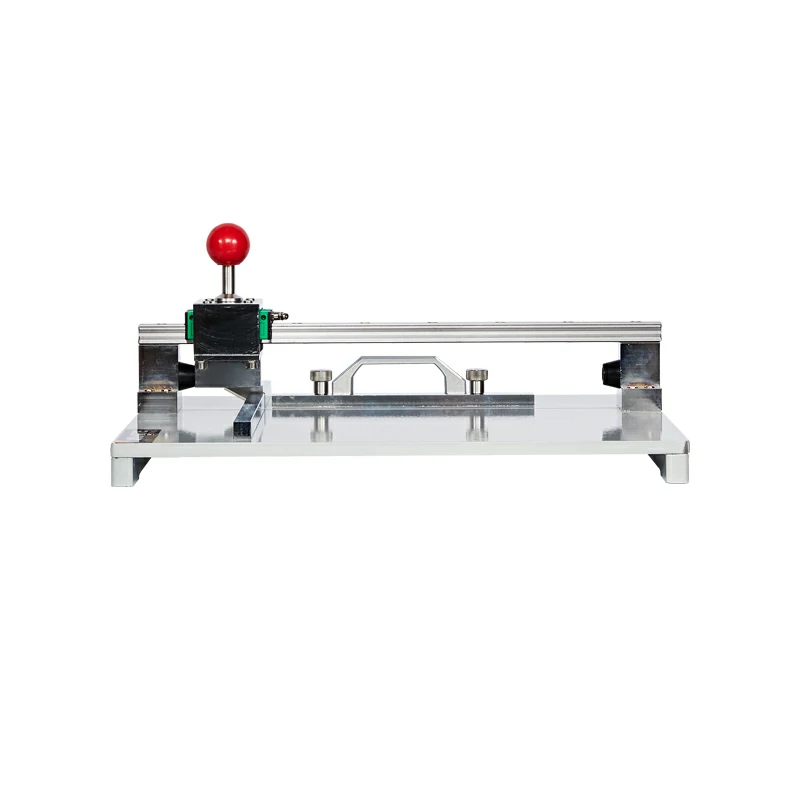

YT-BY25 ECT (PAT) Sample Cutter
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-BY25
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
The ECT(PAT) Sample Cutter is mainly used for sampling in the Edge Crush Test and bond adhesion test, and can quickly and accurately cut the specimen of the specified size, which is an ideal auxiliary test equipment for corrugated cardboard and carton production, scientific research and quality supervision and inspection departments.
QB/T 1671、GB/T 6546
NO. | Parameter items | Technical Indicators |
1 | Sample size | 100×25mm，50.8×50.8mm |
2 | Sampling size error | 25±0.3mm, other ±0.5mm |
3 | Maximum sampling length | 280mm |
4 | Maximum sample thickness | 12mm |
5 | Dimensions | 460×380×200 mm |
6 | Net weight | 22.5 kg |
