Send from factory in 3-7 work days after receive payment
YANTE
YT-H4E
China
100% Advance T/T
Wooden Box

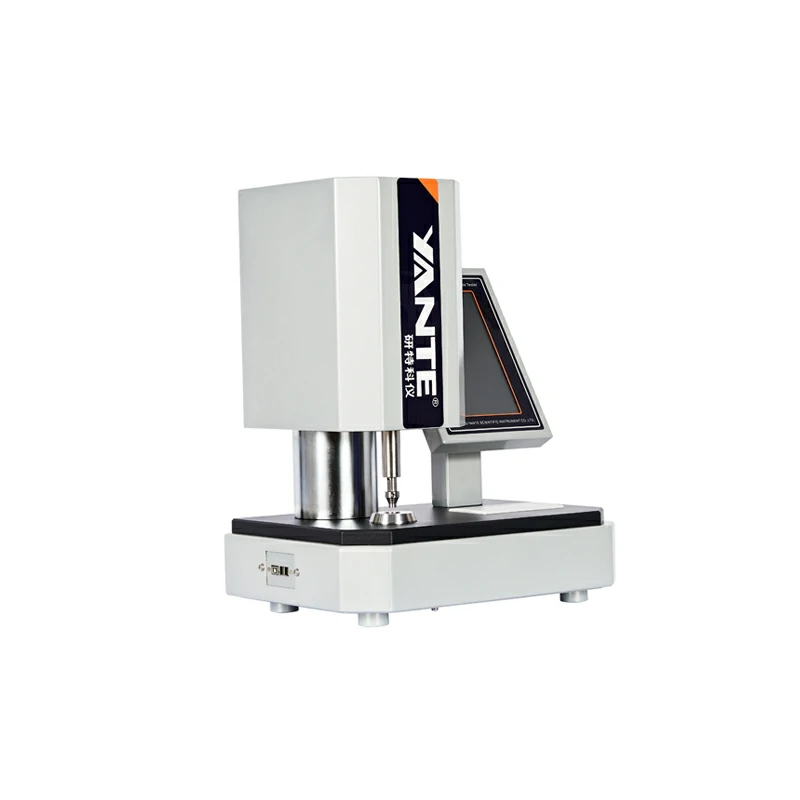

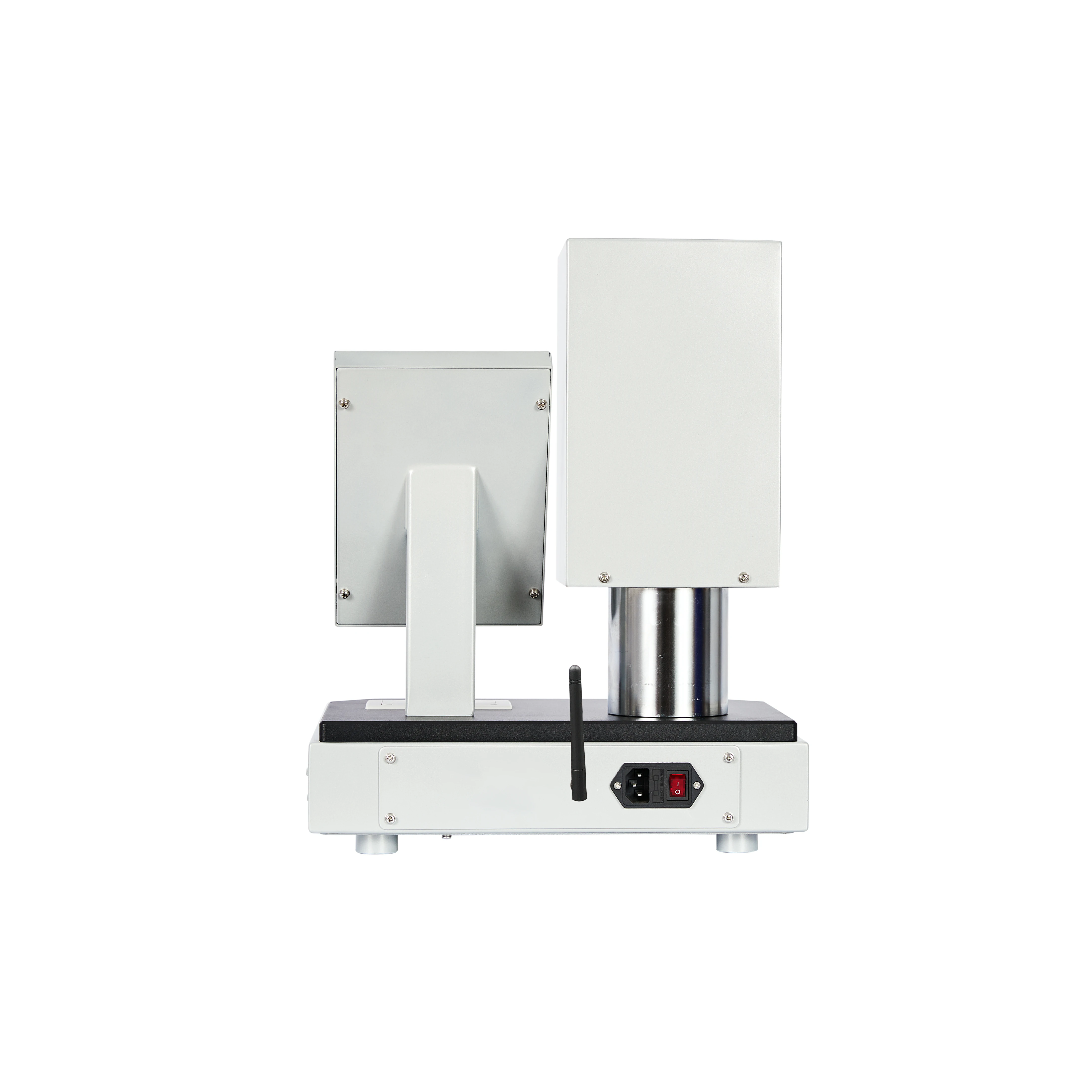

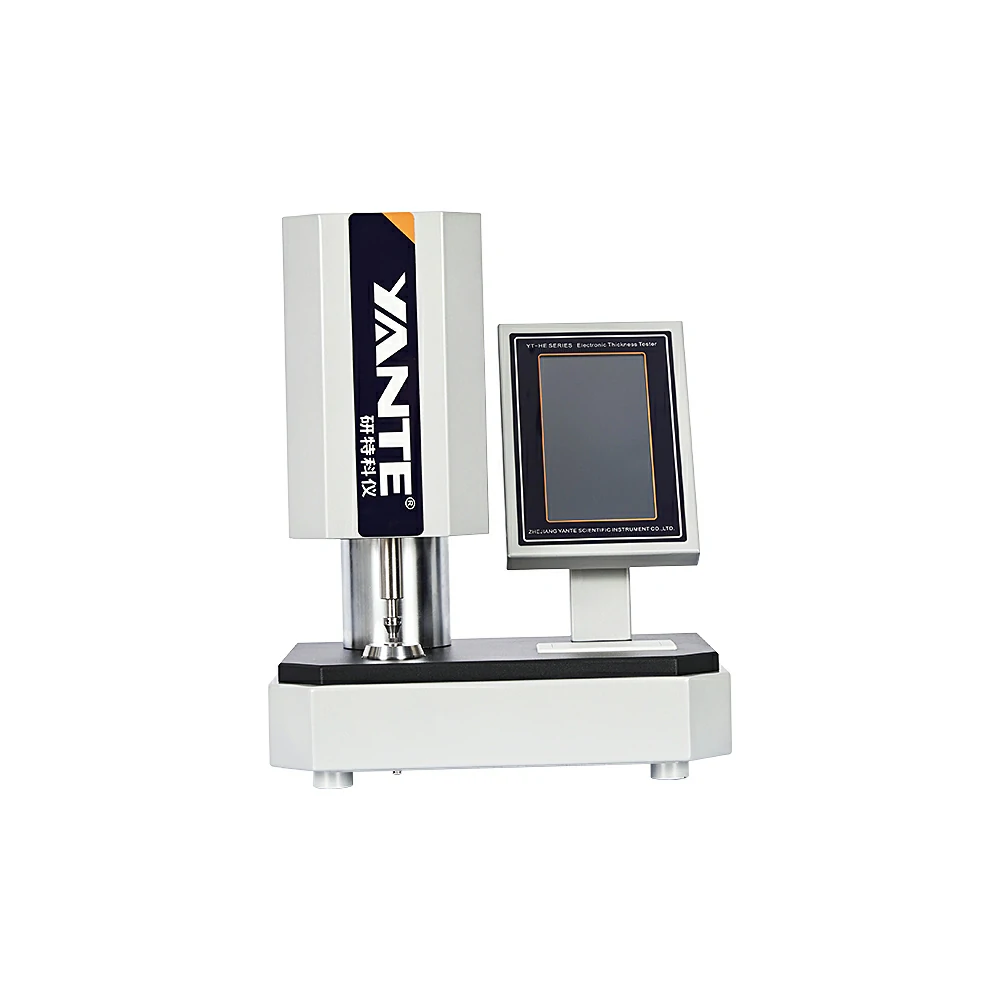

The Film Electronic Thickness Tester is a special instrument for measuring film thickness. It is widely used for measuring the thickness of sheet materials; it is an ideal test equipment for packaging, scientific research and product quality supervision and inspection industries and departments.
Film, membrane
● One-click test, easy to understand.
● Cotex-M4 ARM processor, improve the response speed of the instrument, accurate and fast calculation.
● Probe rise and fall speed is adjustable.
● Data saving function after sudden power failure. Data before power failure can be retained and tested.
● Automatically measure, count and print test results.
● Test data can be exported from USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.
GB/T 6672,ISO 4593
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz, 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Measuring range | (0～2)mm |
5 | Resolution | 0.0001mm |
6 | Indication error | ±1um |
7 | Repeatability | ±1um |
8 | Parallelism between measuring surfaces | 0.002mm |
9 | Contact area | 50 mm² |
10 | Contact pressure | (17.5±1)kPa |
11 | Probe descent speed | （0.5～10）mm/s Adjustable |
12 | Data storage | 50 test data |
13 | Data export | Export data to USB flash drive |
14 | Built-in thermal printer | |
15 | Communication Interface | USB、WIFI（2.4G） |
16 | Dimensions | 365×255×440 mm |
17 | Net Weight | 27kg |
Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Vertical Tensile Tester is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.

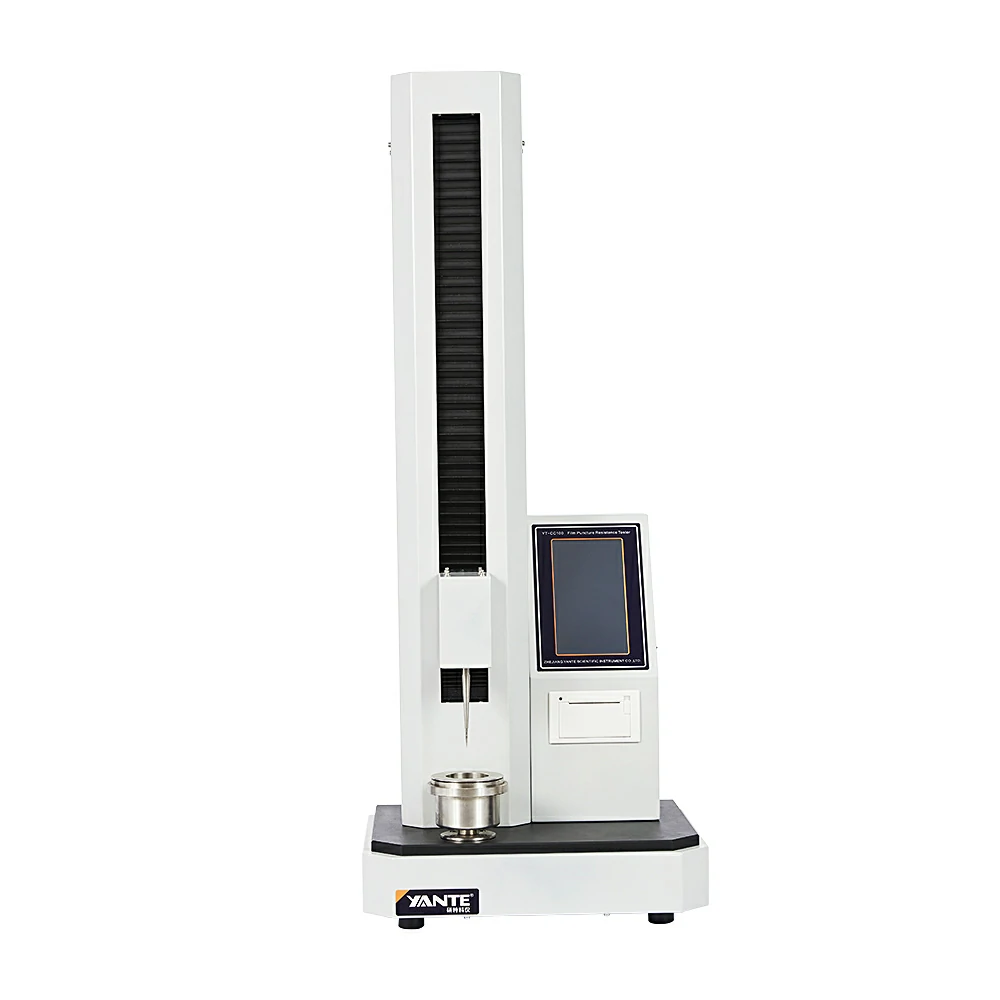

The Film Puncture Resistance Tester is an instrument developed by our company to measure the puncture strength of plastic films and sheets. The instrument has stable test data and easy operation. It is an ideal testing tool for thin film manufacturers and technical supervision departments.

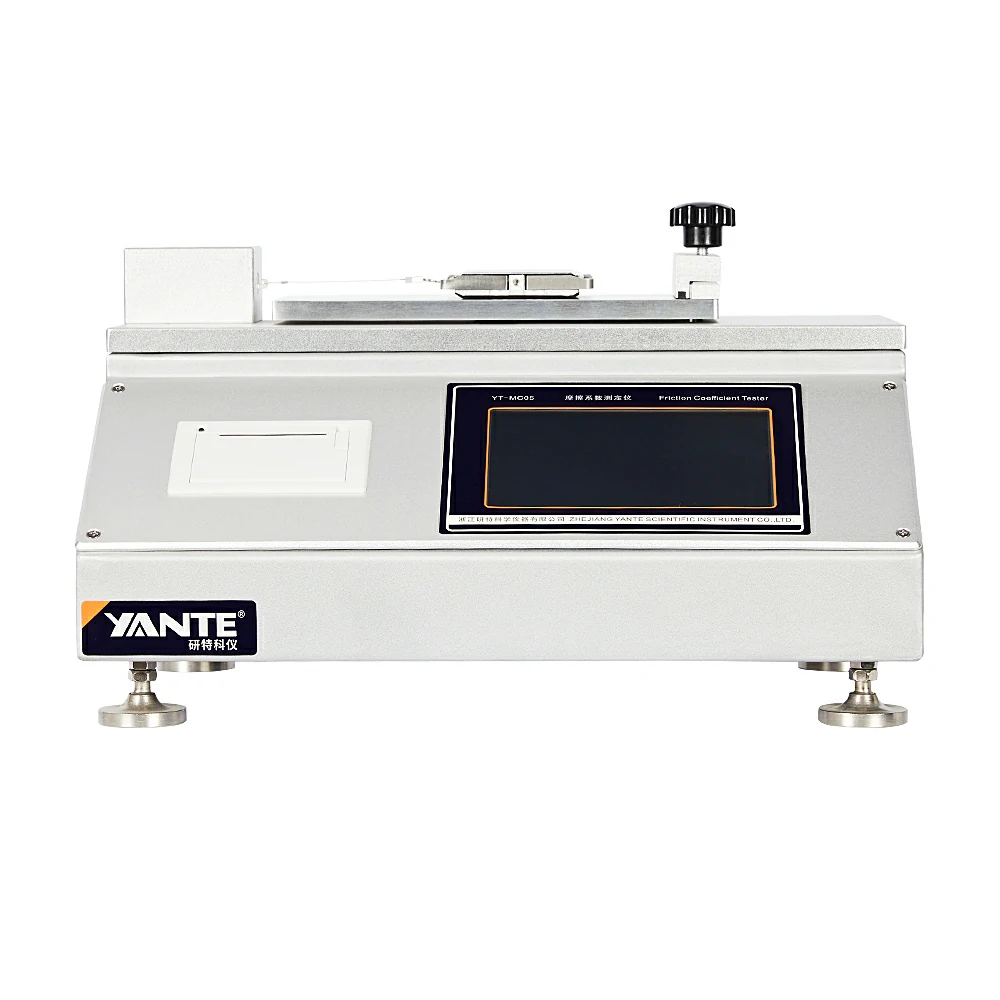

The friction coefficient tester is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets.
