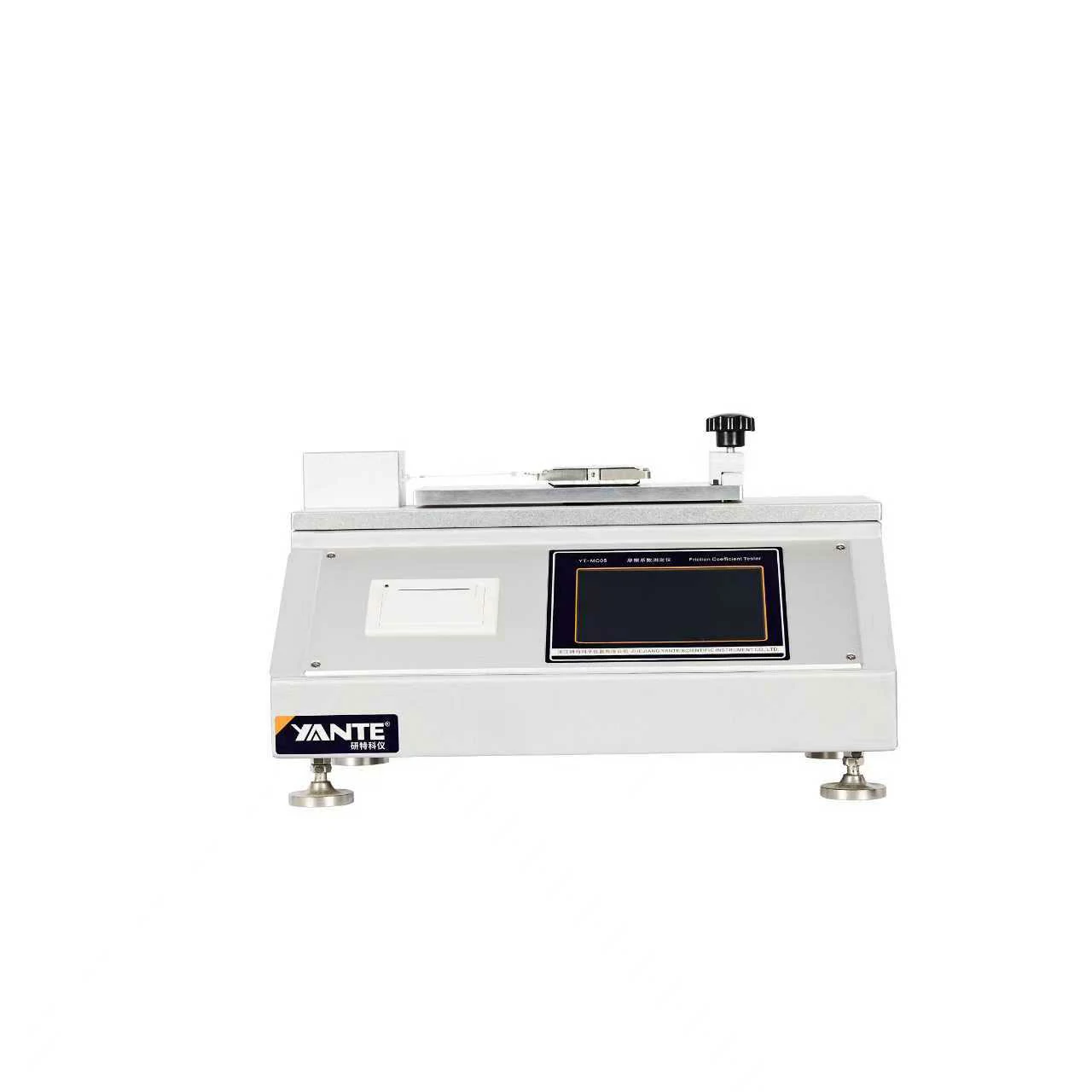

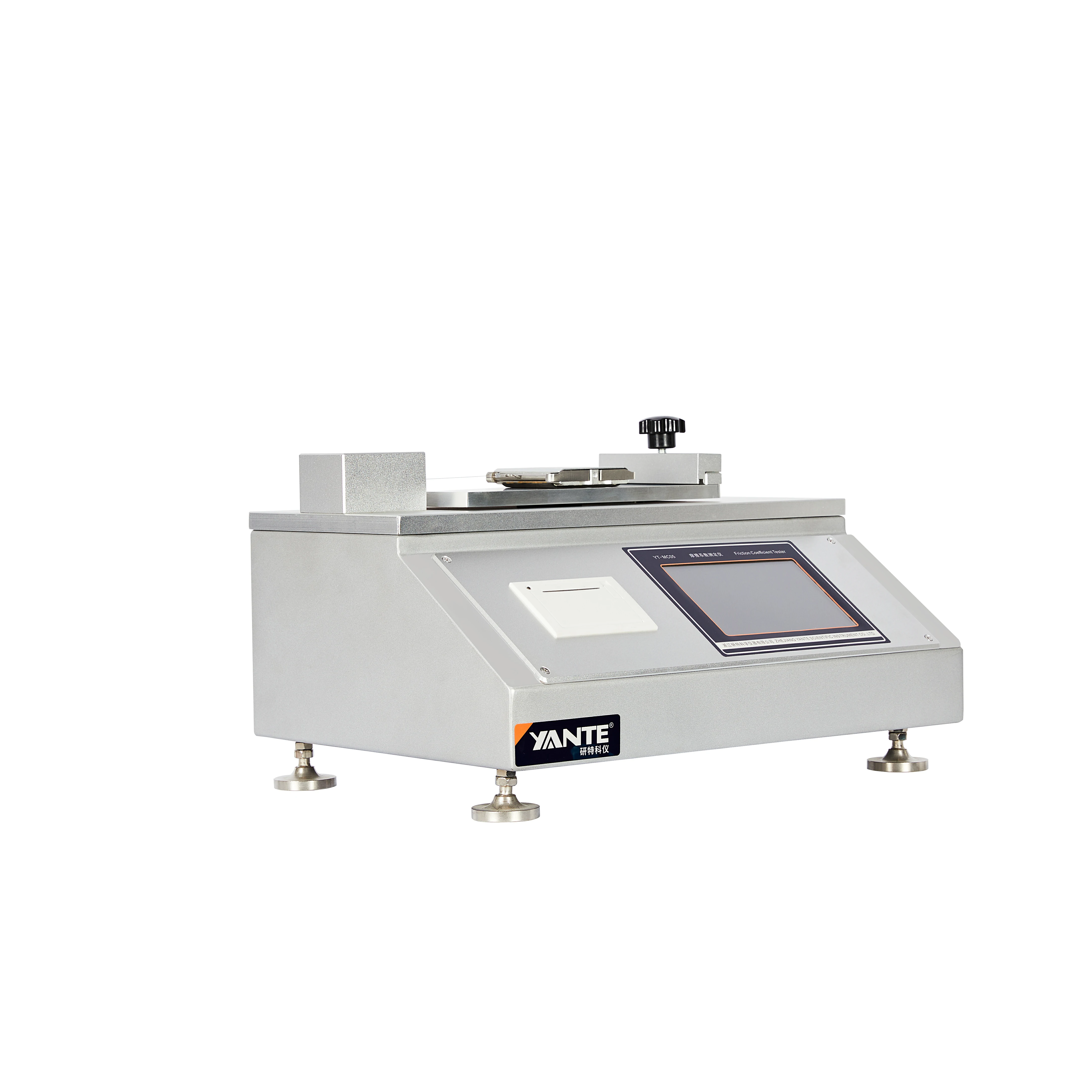

YT-MC05 Friction Coefficient Tester

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    YT-MC05

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

application range.jpg

Plastic film and sheet


product function.jpg

●  ARM processor, 7-inch large-screen color touch screen

●  Test data memory function, high-speed thermal printer print output, fully automatic test function

●  Test data statistical processing function, real-time display of test data and curves

●  The closed-loop servo motor drives the precision ball screw to ensure accurate displacement, smooth operation and low noise.

●  Cooperate with computer software for communication (purchased separately)


executive standard.jpg

GB10006-1988

technical parameters.jpg

No.

Parameter item

Technical index

1

Power Supply

AC(100~240)V,(50/60)Hz 100W

2

Working Environment

Temperature(10~35)℃, Humidity≤ 85%

3

Display

800×480 7 inch color touch screen

4

Force measuring range

(0.05~10)N

5

Resolution

0.001N

6

Slider size

63×63 mm

7

Slider weight

200±2g(For Paper 800g customizable)

8

Test bench size

200×455 mm

9

Measurement accuracy

±0.5%(Range 5%~100%)

10

Slider movement speed

(100±10)mm/min

11

Slide stroke

100 mm

12

Communication Interface

RS232(Default) (USB, WIFI optional)

13

Dimension

460×330×280 mm

14

Net Weight

17.5kg around
