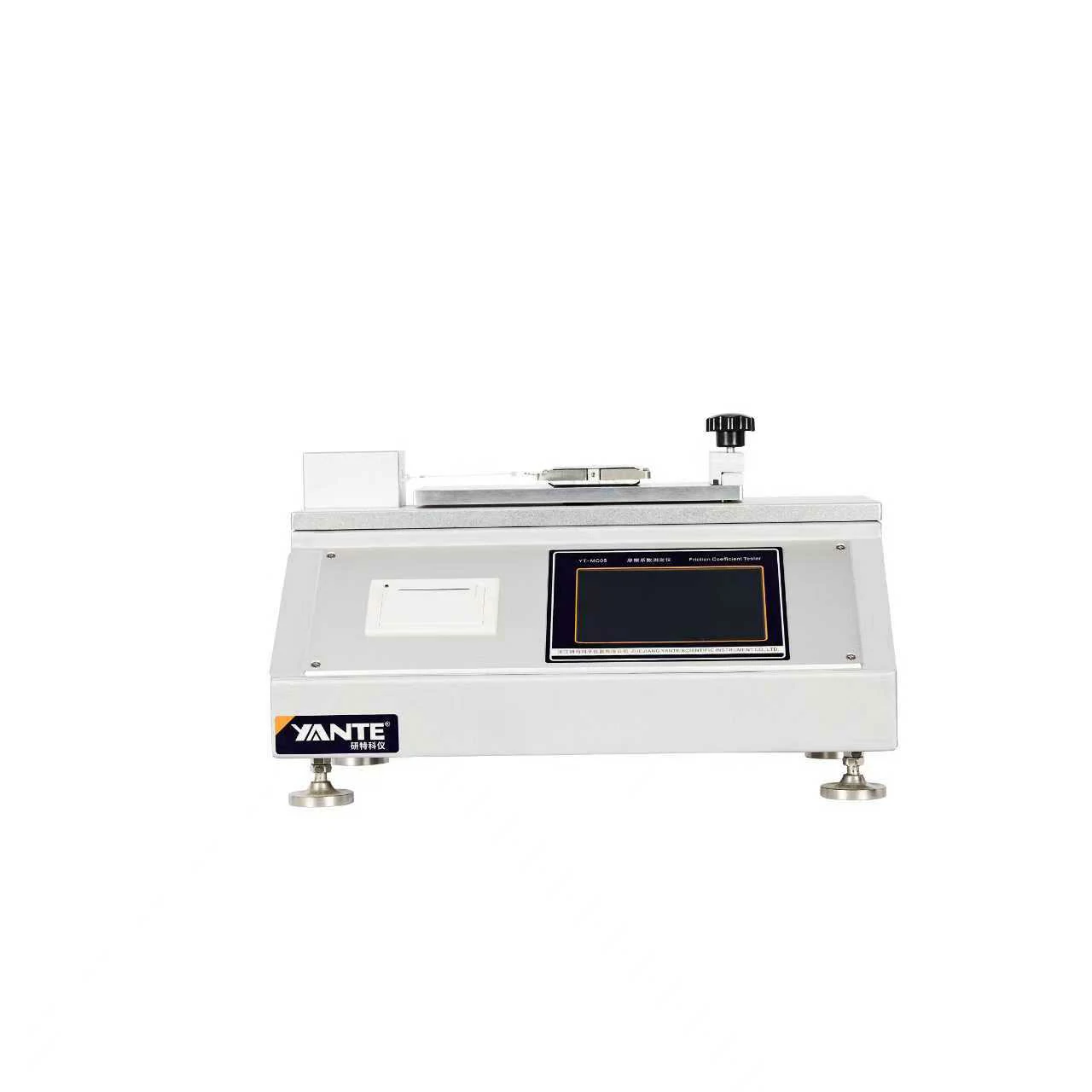

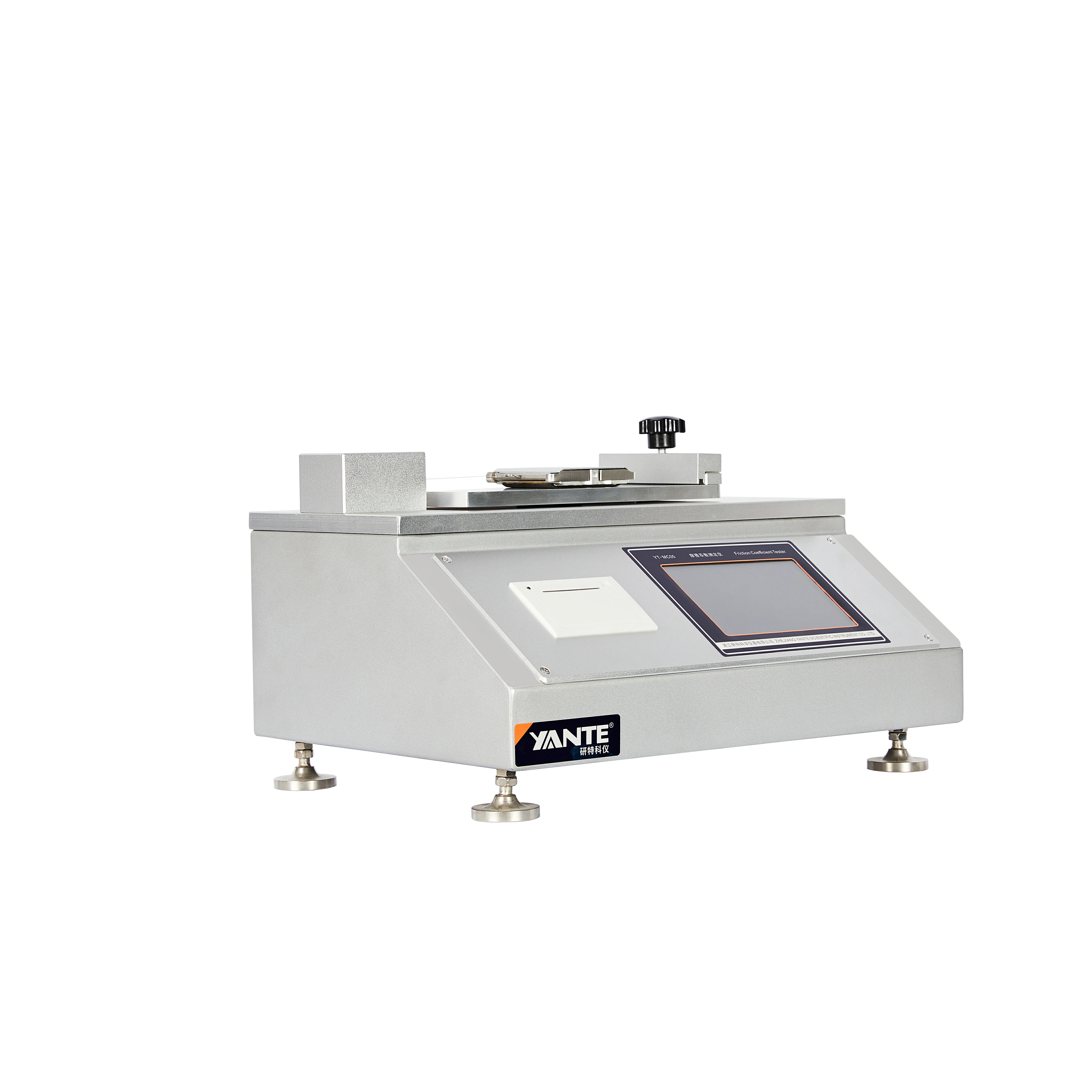

YT-MC05 Friction Coefficient Tester

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    YT-MC05

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

The friction coefficient tester is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets. It can intuitively understand the smoothness and opening of the film, and display the distribution of the lubricant through a curve. By measuring the smoothness of the material, the opening of the packaging bag, the packaging speed of the packaging machine and other production quality process indicators can be controlled and adjusted to meet the product use requirements.

application range.jpg

Plastic film and sheeting


product function.jpg

●  Cotex-M4 ARM processor, 7-inch large color touch screen.

●  Test data memory function, high-speed thermal printer print output, fully automatic test function.

●  Test data statistical processing function, real-time display of test data and curves.

●  Closed-loop servo motor drives precision ball screw to ensure accurate displacement, smooth operation and low noise.

●  Test data supports USB export.

●  The system and screen software can be upgraded via the network or USB.

●  Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.

●  Test data supports uploading to cloud servers, and cooperates with QMS paper quality management system (purchased separately) to monitor paper inspection data in real time.


executive standard.jpg

GB10006-2021

technical parameters.jpg

No.

Parameter Item

Technical indicators

1

Power supply

AC(100~240)V,(50/60)Hz,100W

2

Working environment

Temperature (10~35)℃, relative humidity ≤85%

3

Display

7-inch IPS high-definition screen, 1024*600 resolution capacitive touch

4

Measuring range

(0.05~10)N

5

Resolution

0.001N

6

Slider size

63×63 mm

7

Slider mass

200±2g(paper 800g customized)

8

Test bench size

125×360 mm

9

Measurement accuracy

±0.5%(range 5%~100%)

10

Slider movement speed

(100±10)mm/min

11

Slider stroke

150 mm

12

Data storage

50 test data

13

Data export

Export data to USB flash drive

14

Print

Built-in thermal printer

15

Communication interface

USB、WIFI(2.4G)

16

Dimensions

460×330×300 mm

17

Net weight

17kg
