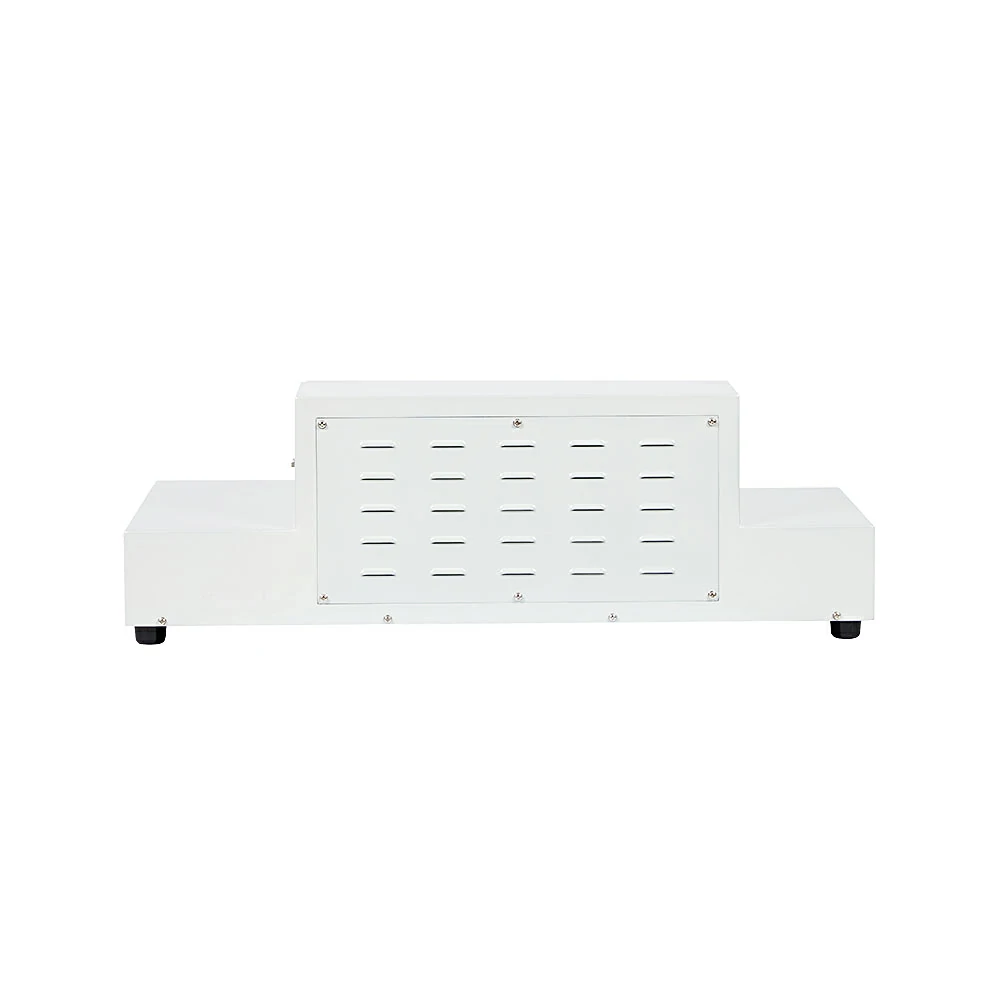

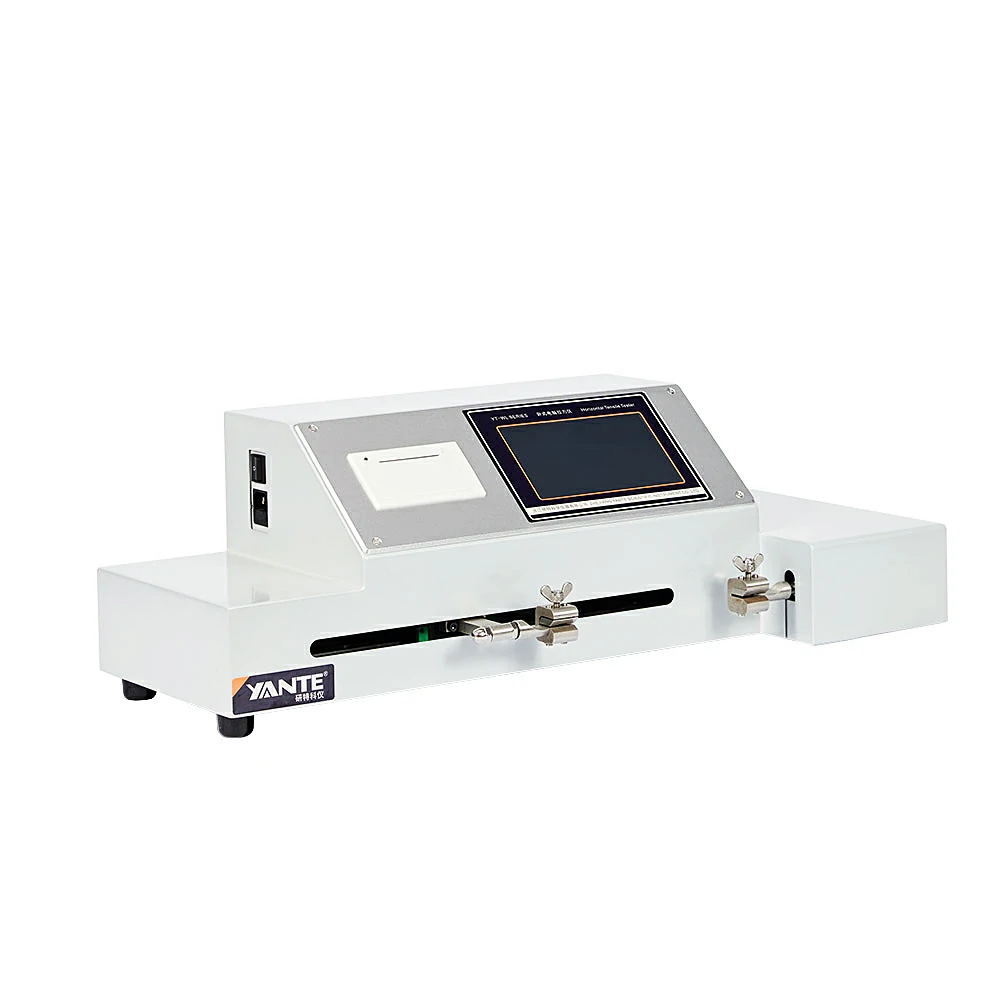

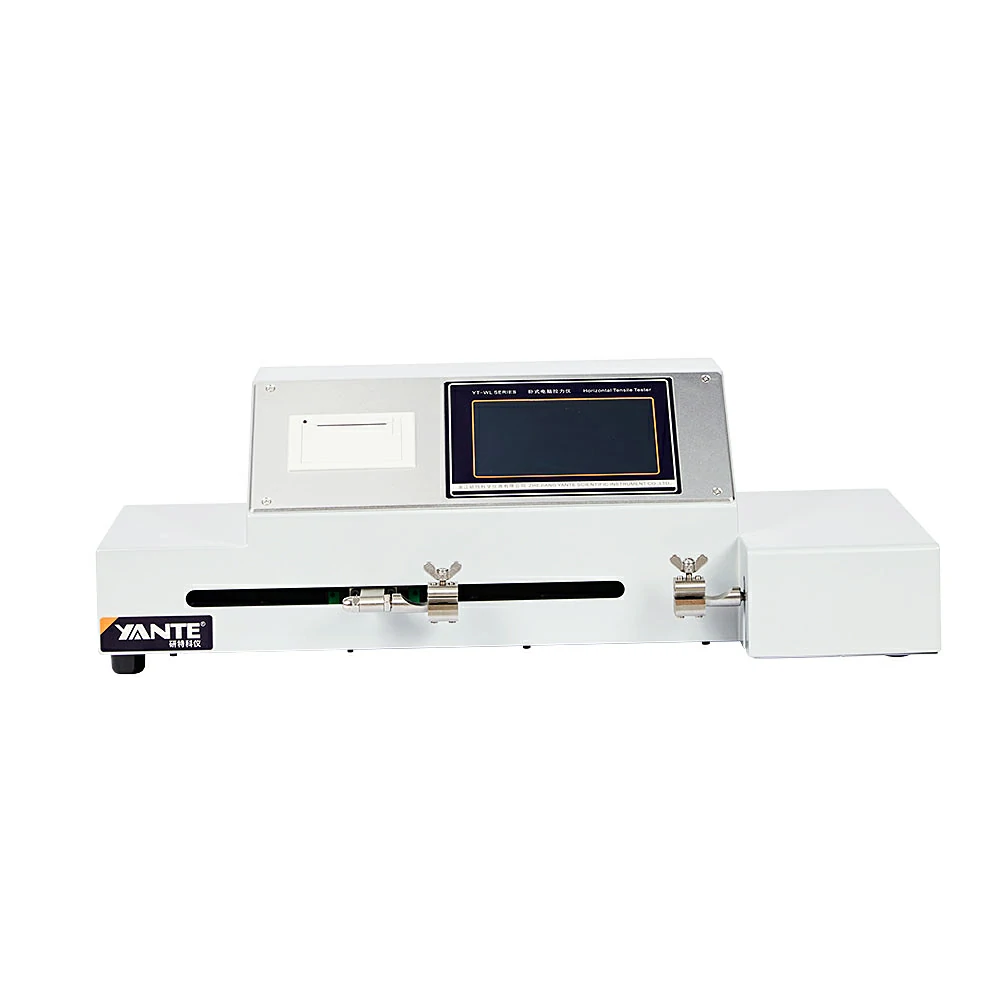

YT-WL Series Horizontal Tensile Tester

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    YT-WL

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

application range.jpg

●  Paper, cardboard; aluminum foil, aluminum-plastic tape;

●  Plastic film and other non-metallic materials.

●  Non-woven fabric


product function.jpg

●  Measure tensile and tensile strength

●  Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus

●  Measure the peel strength of adhesive tape


product features.jpg

●  The transmission mechanism adopts a ball screw and three guide shafts, and the transmission is stable and accurate.

●  Using closed-loop servo stepping motor, low noise and precise control.

●  Real-time display of stretching curve.

●  The ARM processor improves the response speed of the instrument and ensures the real-time performance of the measurement.

●  Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

●  Features of automatic reset, data memory, overload protection and fault self-diagnosis.

●  Cooperate with computer software for communication (purchased separately).


executive standard.jpg

GB/T 12914,GB/T 2792,GB/T 24218.3,GB/T 1040,TAPPI  T 494


supporting accessories and consumable.jpg

No.

Accessory name

Model


Standard

Optional

1

Standard Distance Cutter

YT-Q15

  Standard Distance Cutter.jpg


2

Punch Standard Distance Cutter

YT-CQ15

   Punch Standard Distance Cutter.jpg


3

Adjustable Paper Cutter

YT-TJD300

Adjustable Paper Cutter.jpg



technical parameters.jpg

No.

Parameter item

Technical index

1

Power Supply

AC(100~240)V,(50/60)Hz 100W

2

Working Environment

Temperature(10~35)℃, Humidity≤ 85%

3

Display

7 inch color touch screen

4

Measuring range

(0.15~30)N /(1~300)N /(3~1000)N

5

Display resolution

0.01N(WL30) / 0.1N(WL300) / 0.1N(WL1000)

6

Indication error

±1%(Range5%~100%)

7

Work stroke

300mm

8

Sample width

15mm(25mm,50mm Optional)

9

Stretching speed

(1~500)mm/min((Can be adjusted arbitrarily)

10

Print

Built-in thermal printer

11

Communication Interface

RS232(Default) (USB, WIFI optional)

12

Dimension

700×310×240  mm

13

Net Weight

35kg around
