Send from factory in 3-7 work days after receive payment
YANTE
YT-RRY1000
China
100% Advance T/T
Wooden Box

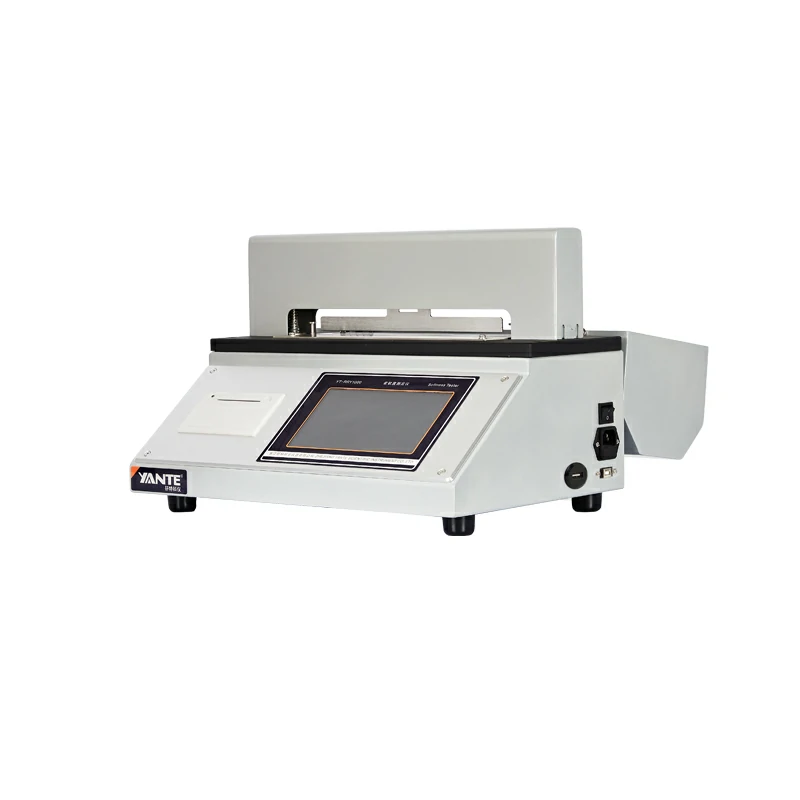

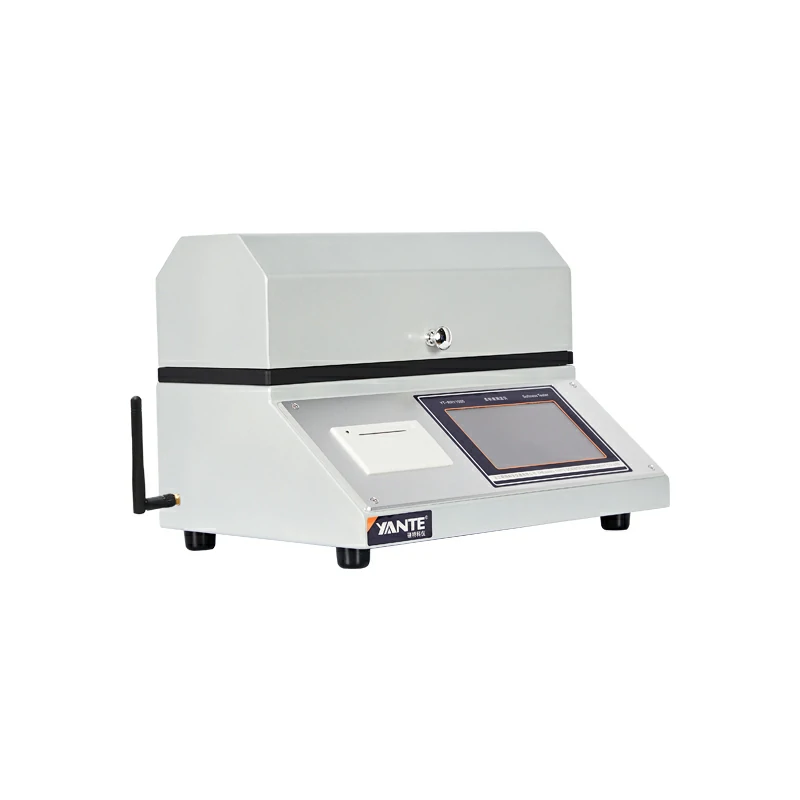

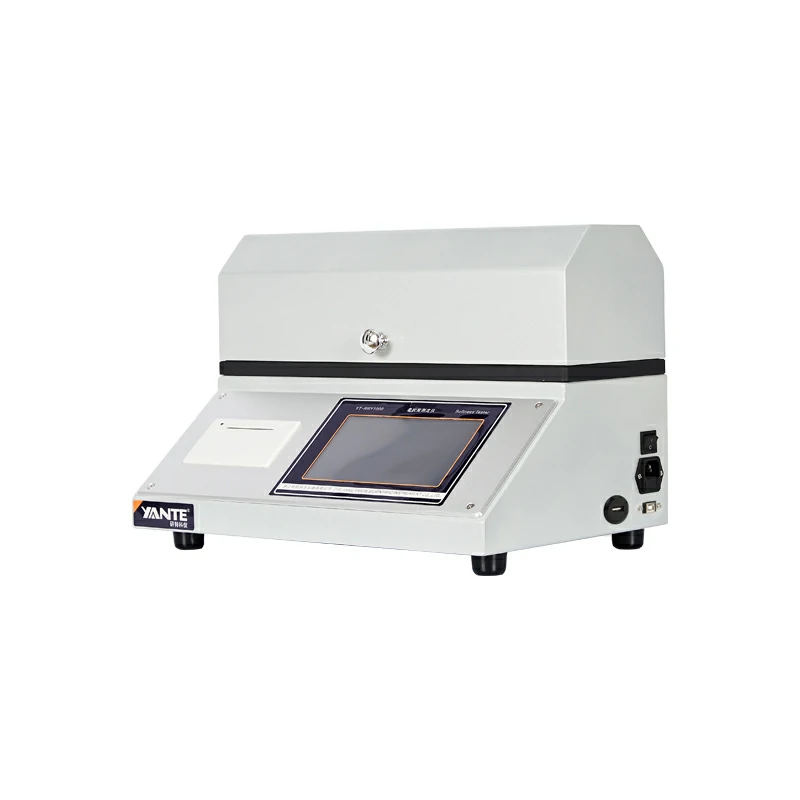

The softness tester is a new type of high-precision intelligent testing instrument that is carefully and reasonably designed using modern mechanical design concepts and microcomputer processing technology. It is an ideal experimental equipment for industries and departments such as papermaking, scientific research and quality inspection.
Toilet paper, tobacco sheet, fiber fabric, non-woven fabric, cloth, film, etc.
● One-button test, simple and easy to understand.
● Cotex-M4 ARM processor improves the response speed of the instrument, and calculates data accurately and quickly.
● Real-time display of pressure curve.
● Sudden power failure data saving function, the data before power failure is retained after booting and the test can be continued.
● Software and hardware over-range to ensure the safety of sensor use.
● Test data supports USB export.
● The system and screen software both support upgrading via network or USB.
● Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.
● Test data supports uploading to cloud server, cooperate with QMS paper quality management system (purchased separately), real-time monitoring of paper inspection data.
GB/T8942，QB/T1060
No. | Parameter Item | Technical indicators |
1 | Power supply | AC(100～240)V，(50/60)Hz, 50W |
2 | Working environment | Temperature (10～35)℃, relative humidity ≤85% |
3 | Display | 7-inch IPS high-definition screen, 1024*600 resolution capacitive touch |
4 | Measuring range | (10～1000)mN |
5 | Resolution | 0.1mN |
6 | Indication error | ±1％(Range 5%～100%) |
7 | Total probe stroke | (12±0.5)mm(adjustable) |
8 | Probe indentation depth | 8mm |
9 | Test speed | 72±0.72 mm/min(1-250 mm/min adjustable) |
10 | Sample table gap width | 5/6.35/10/20mm(adjustable in four gears) |
11 | Slit parallelism error | ≤0.05mm |
12 | Probe centering error | ≤0.05mm |
13 | Data storage | 50 test data |
14 | Data export | Export data to USB flash drive |
15 | Built-in thermal printer | |
16 | Communication interface | USB、WIFI(2.4G) |
17 | Dimensions | 425×290×305 mm |
18 | Net weight | 20kg |
Tissue Paper Electronic Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials and corrugated paperboard. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
The Tissue Powder Drop Rate Tester is a basic instrument for measuring the powder drop rate of toilet paper and its products. Fix the long end of the sample on the sample holder and stop after swinging for a certain period of time, and weigh the mass before and after the swing.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.
The Ball Burst Tester uses the principle that the ball type test head punctures the sample to analyze the rupture strength of dry and wet samples.
